ASAP Energy

ASAP ENERGY BASED IN WEATHERFORD, OKLAHOMA

  • Rustic Corregated Sheet Metal Acid Washed

  • Back Lit LED Signs

  • Dimensional Letters Multi Layer format

About This Construction Project

Cashier Area with Overhead Canopy

  • High Visibility
  • Area Sign
  • Back lite LED
  • Elevated Merchandisers that Create Point of Sale Traffic

Hot Food and Coffee Islands

  • High Visual Impact
  • Increased Foot Traffic Patterning Drawing People to the Center of the store
  • Easy access around Fixtures for Added Customer Flow

ASAP General Store - Timeline and Process

First Step

The First Step in the Equipment Installation Process Happens at this Point. We call this "Building Dry In". At this Point the Building is Ready for Walk In Coolers to be Set!

Walk-In Coolers

The Walk-In Coolers are Set Into Place and Become a Part of the Interior Framework of the Building!

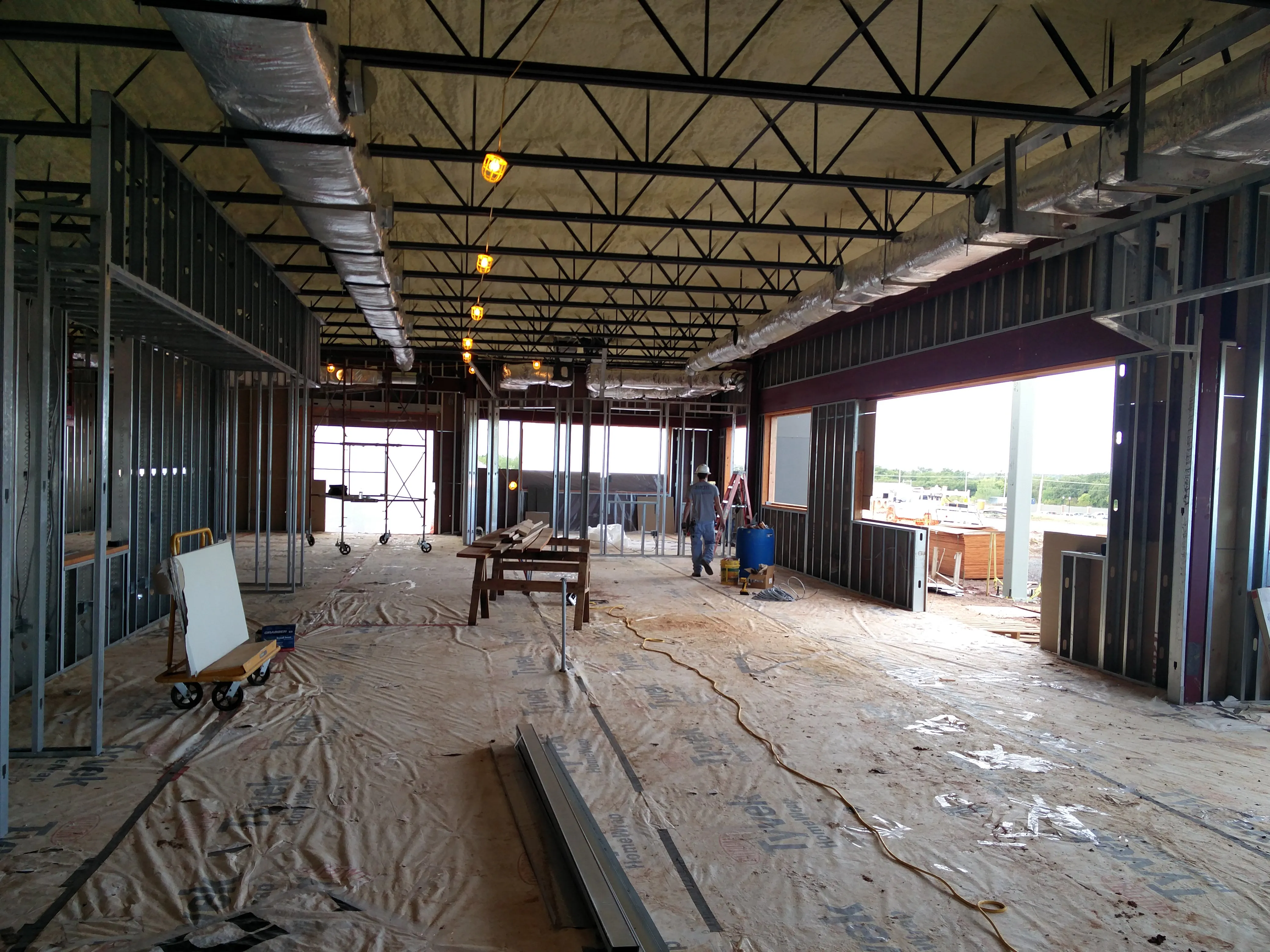

Convenience Store Design and Construction First Step

First Step

The First step in the equipment installation process happens at this point. We call this "Building Dry In". At this point, the building is ready for walk-in coolers to be set!

Convenience Store Design and Construction Second Step

Walk-In Coolers

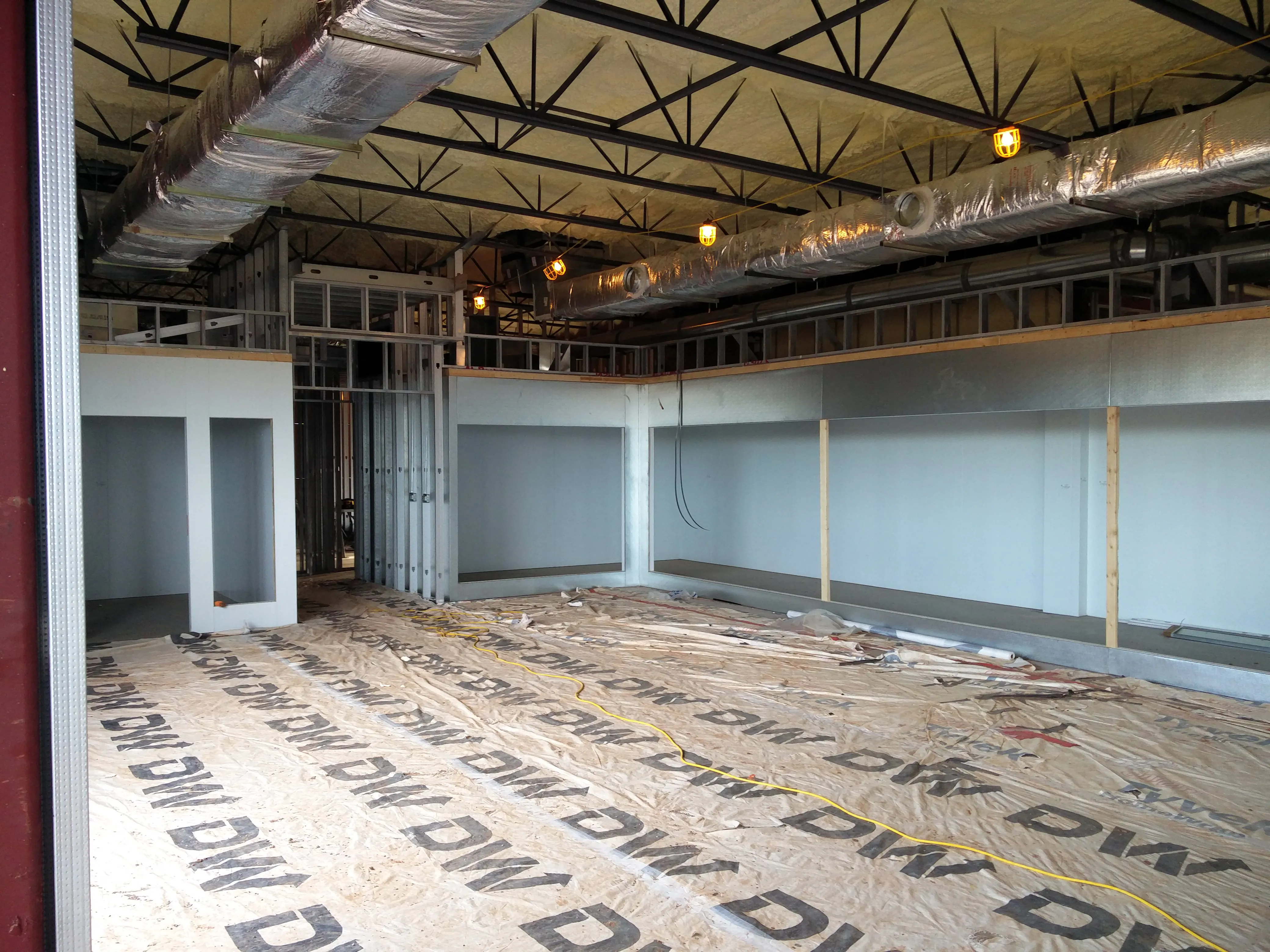

The walk-in coolers are set into place, becoming part of the interior framework of the building!

Convenience Store Design and Construction Fourth Step

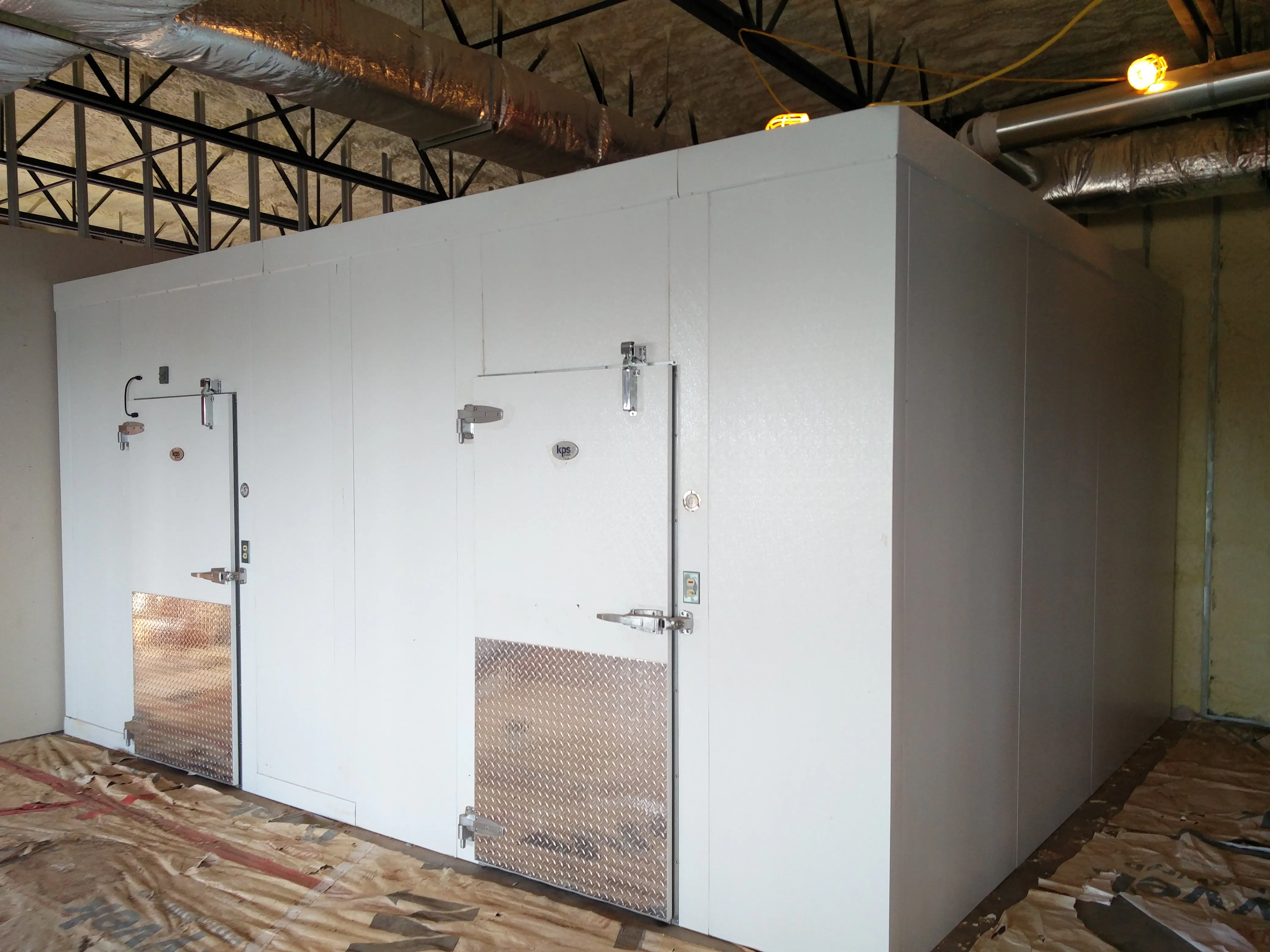

Food Service Walk-In Freezer

This is a picture of the foodservice walk-in freezer and cooler, which is placed and ready to receive the drop ceiling. The next phase of construction is after the walls of the building have been covered. We use a white baked enamel finish which makes cleaning easier and gives a finished appearance to the walk-in package.

Convenience Store Design and Construction Third Step

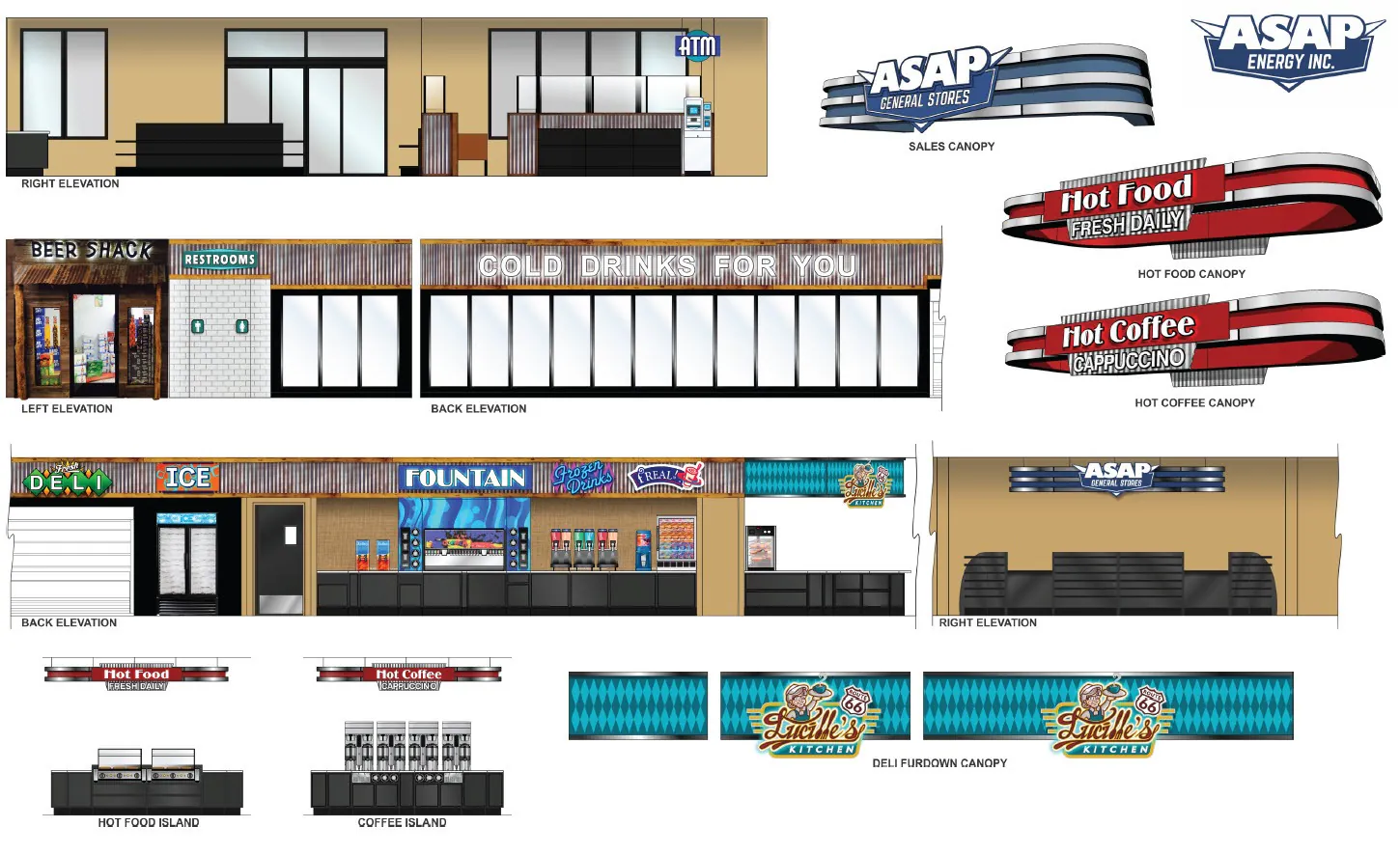

Graphics Work and Package

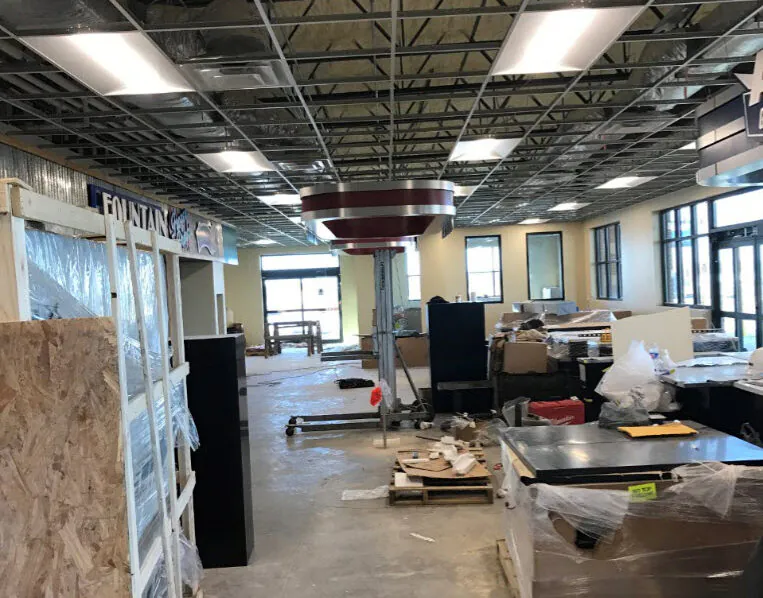

This is the beginning of the graphics work. We design the graphics package and begin the installation shortly afterward. This installation usually happens after the drop ceiling is installed but in this application, we installed this a little earlier in the process to gain access to the building roof structure. From here, we will purposefully suspend canopies over the foodservice equipment and cashier areas.

Convenience Store Design and Construction Fifth Step

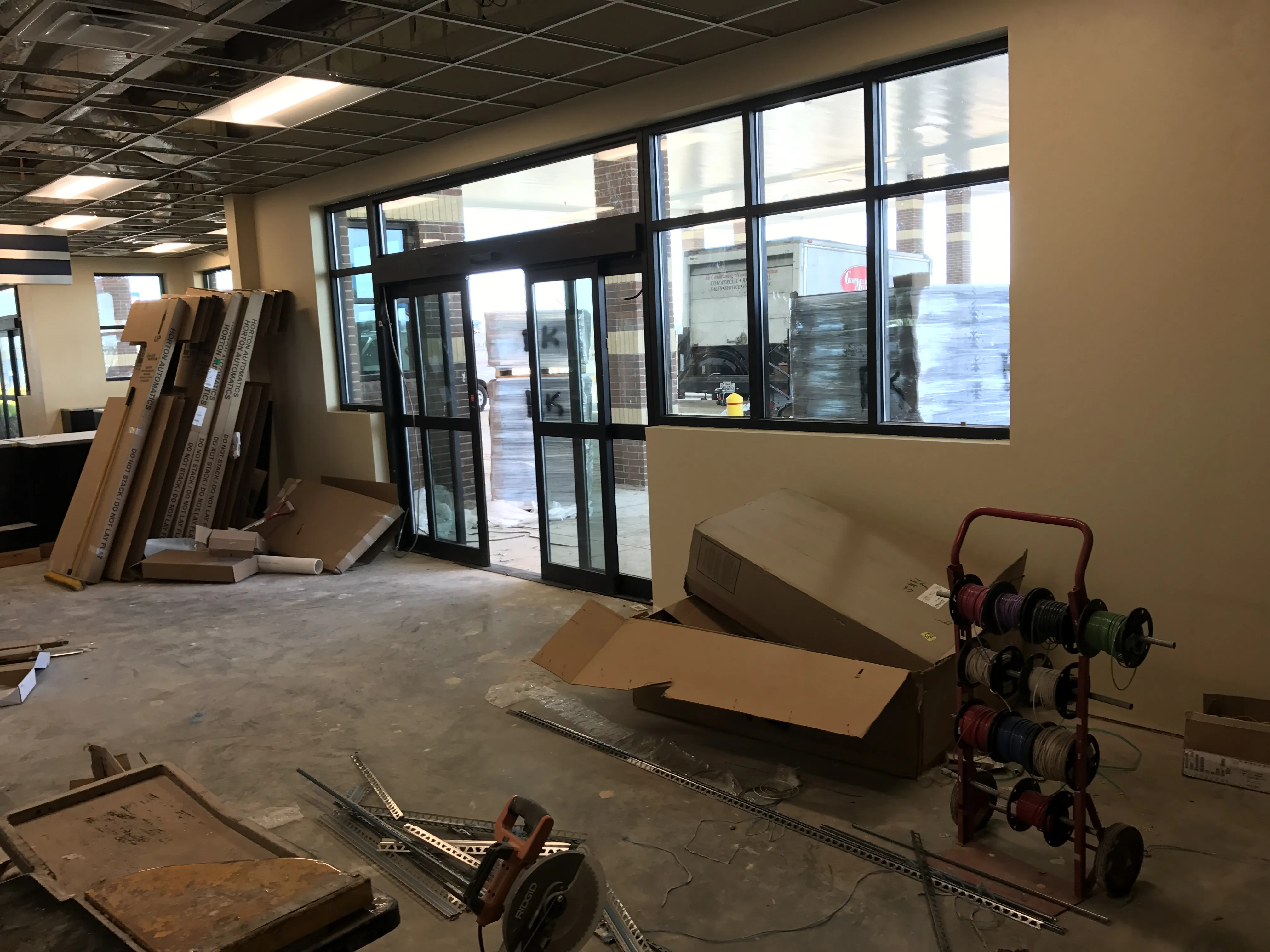

Interior Equipment Package Prep

This is a picture of the construction jumble that happens just before the interior equipment package and retail fixtures are set.

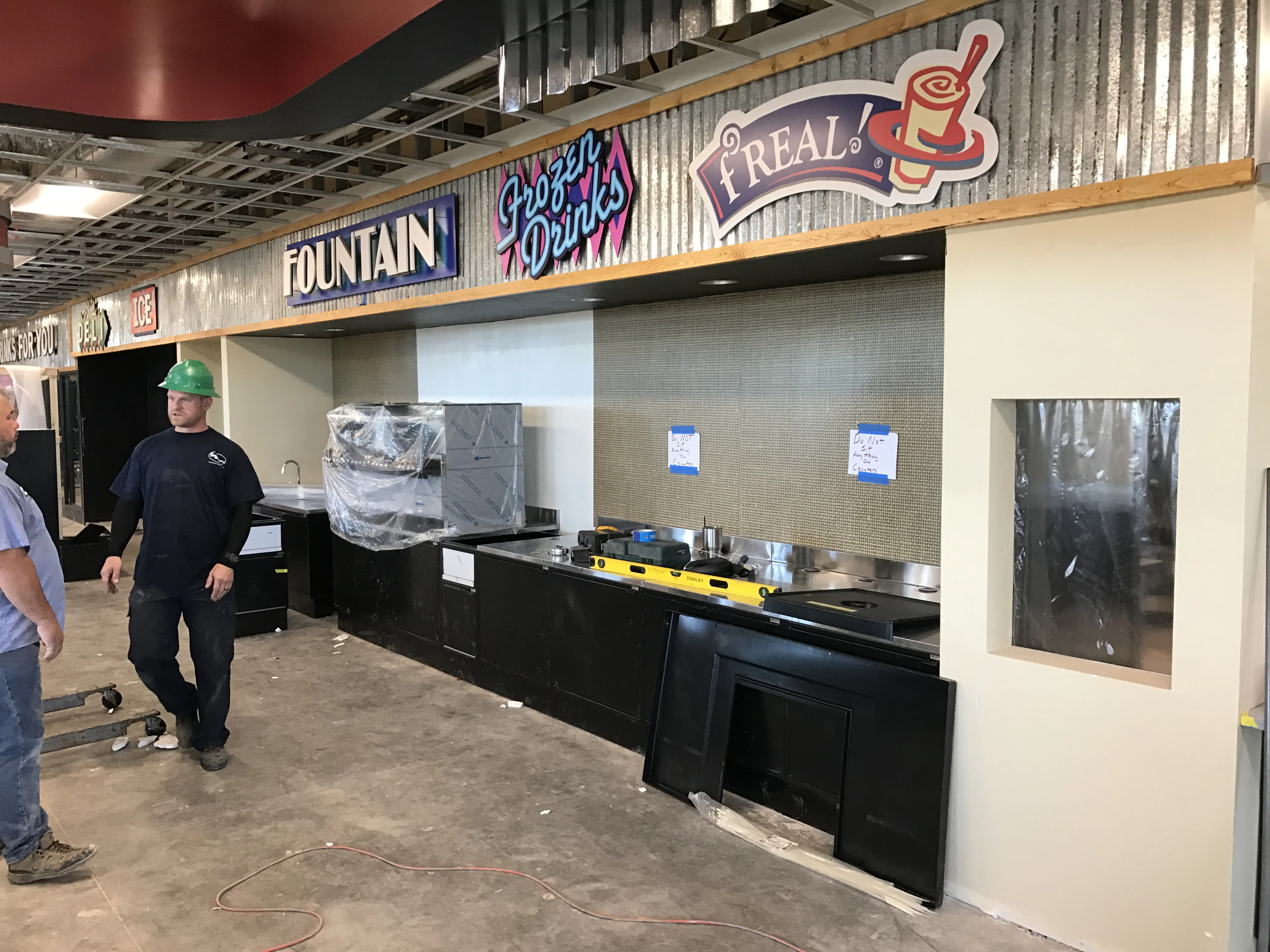

Convenience Store Design and Construction Step 6

Cabinet Installation

This picture shows the result of our high-quality cabinet installation process. At this location, the floors were unstained concrete with a polymer finish that was applied after the cabinets were set. Typically with tile floors, the cabinets are set after all of the tiling has been completed.

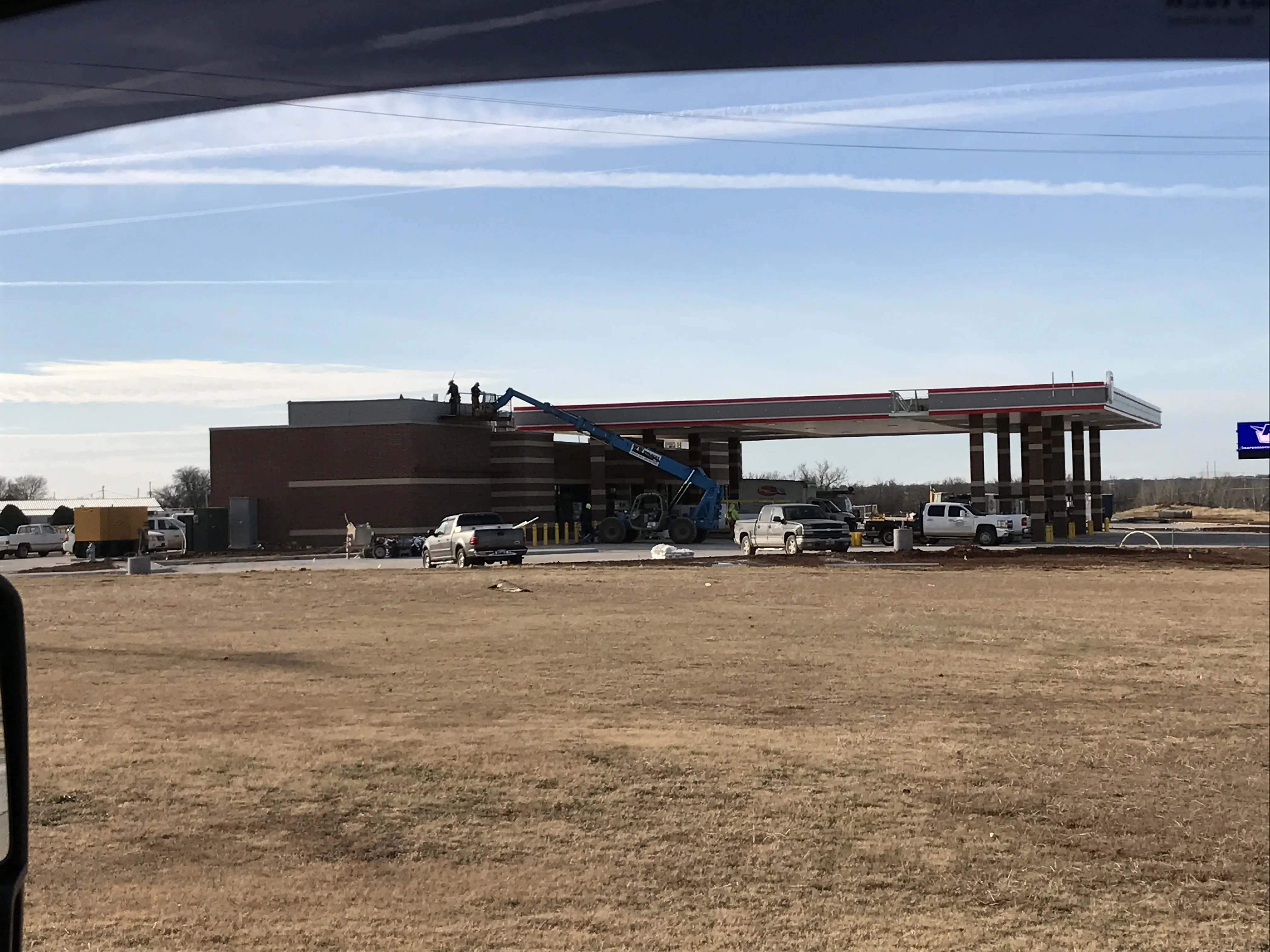

Convenience Store Design and Construction Step 19

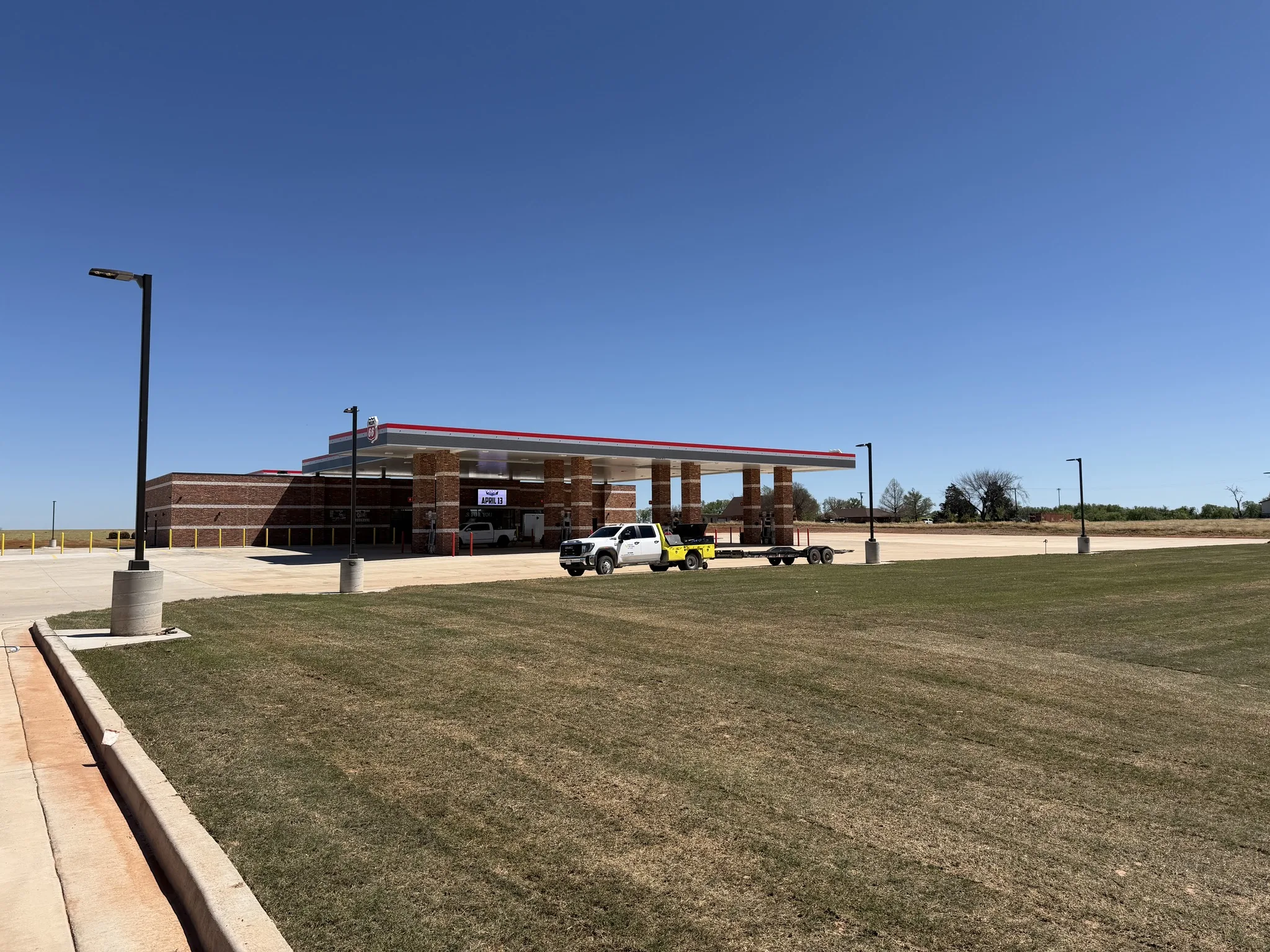

Outside Progress

If you would like a reference to our effective work, this is a picture showing the progress on the outside of the building. Our team creates workflows that operate smoothly outside and inside at a rapid clip!

Convenience Store Design and Construction Step 7

Beverage Cooler and Backstock Shelving

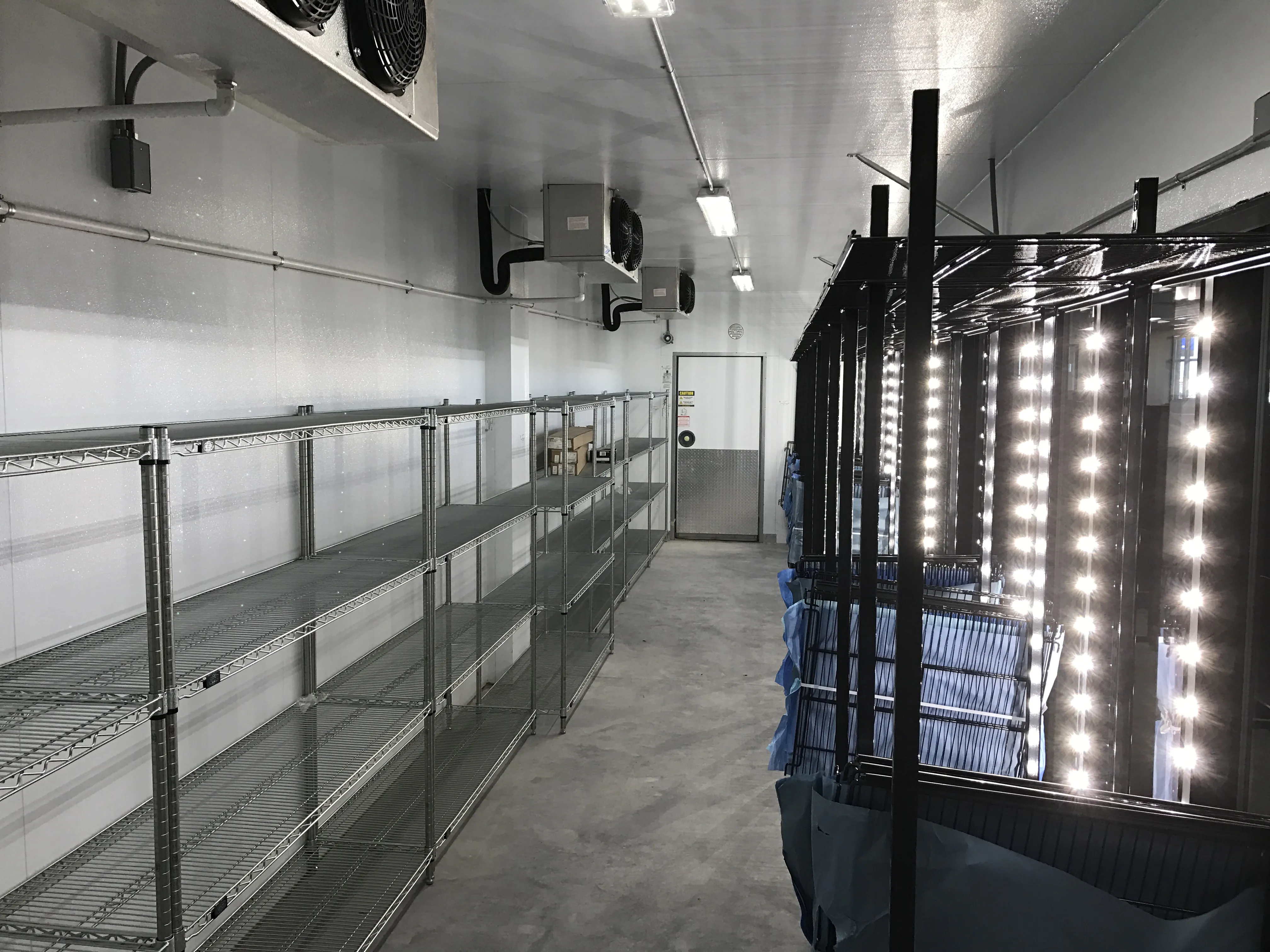

This picture shows the interior of the main beverage cooler with backstock shelving against the back wall of the cooler and the shelving package installed behind the glass display doors. The standards are set with top and bottom shelves. The remaining shelves are set by the vendors as they merchandise the doors for retail display.

Convenience Store Design and Construction Step 9

Front of Walk-In Coolers

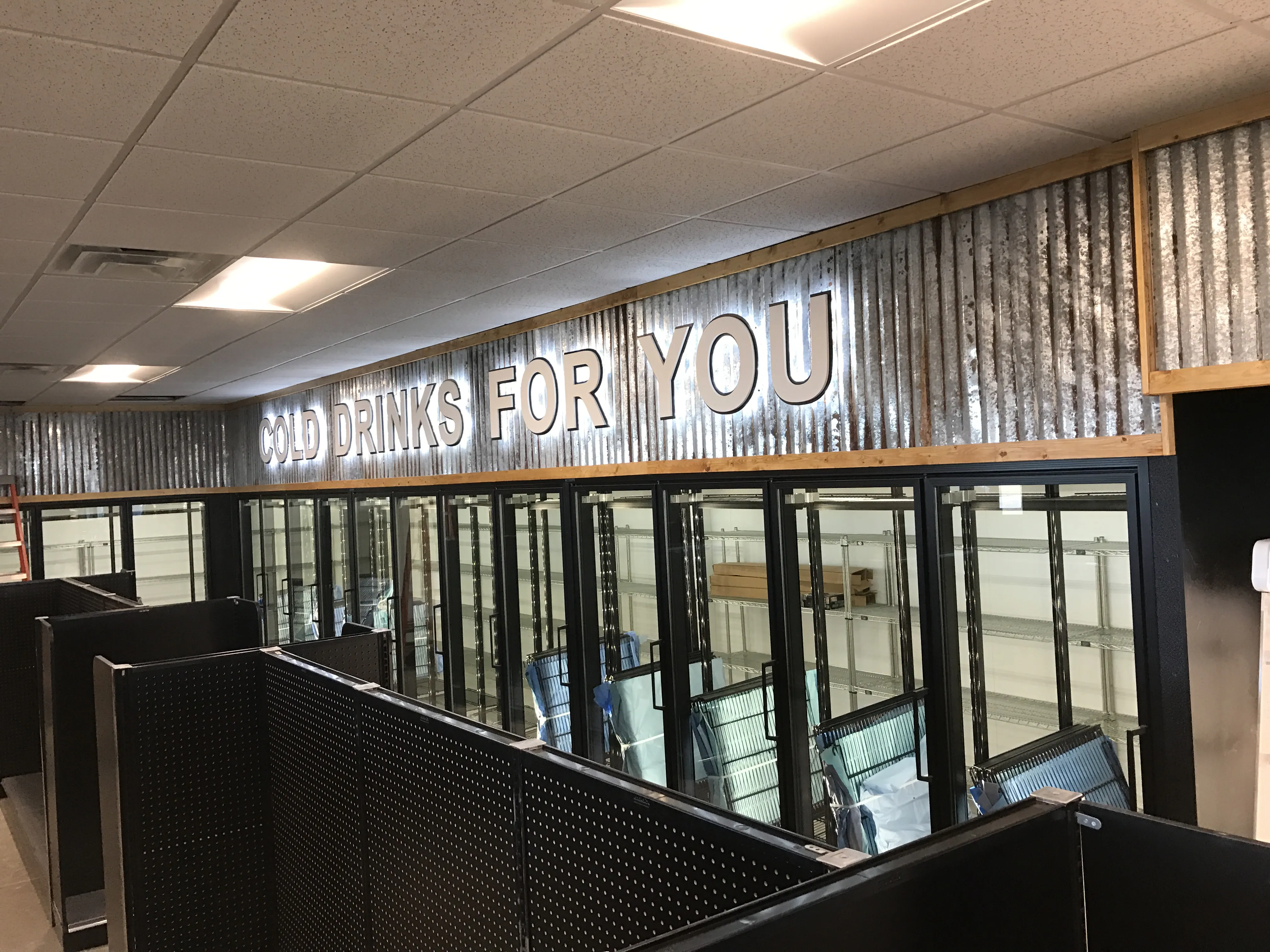

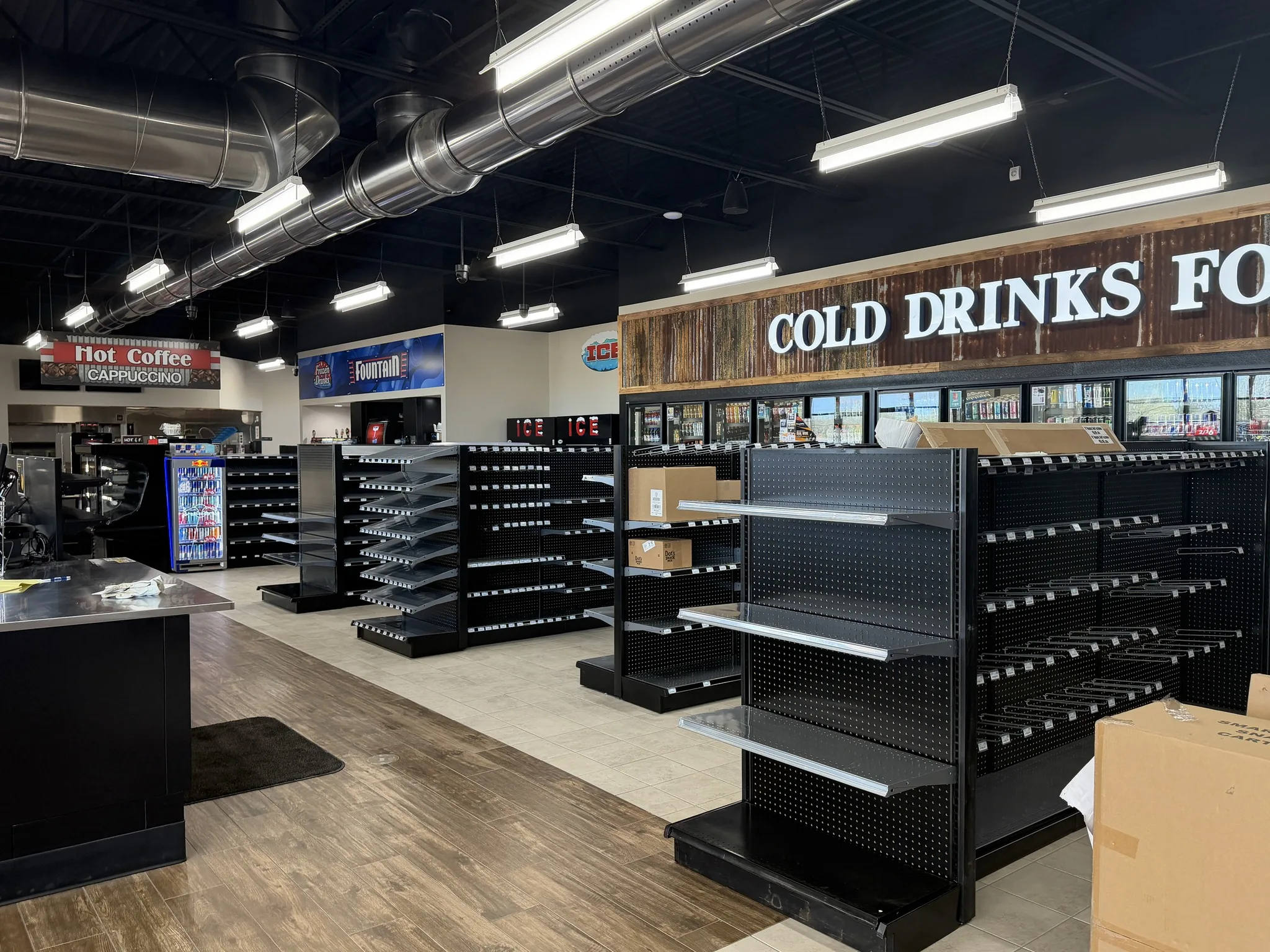

This picture is a look at the front of the walk-in cooler section before the vendors have stocked the product.

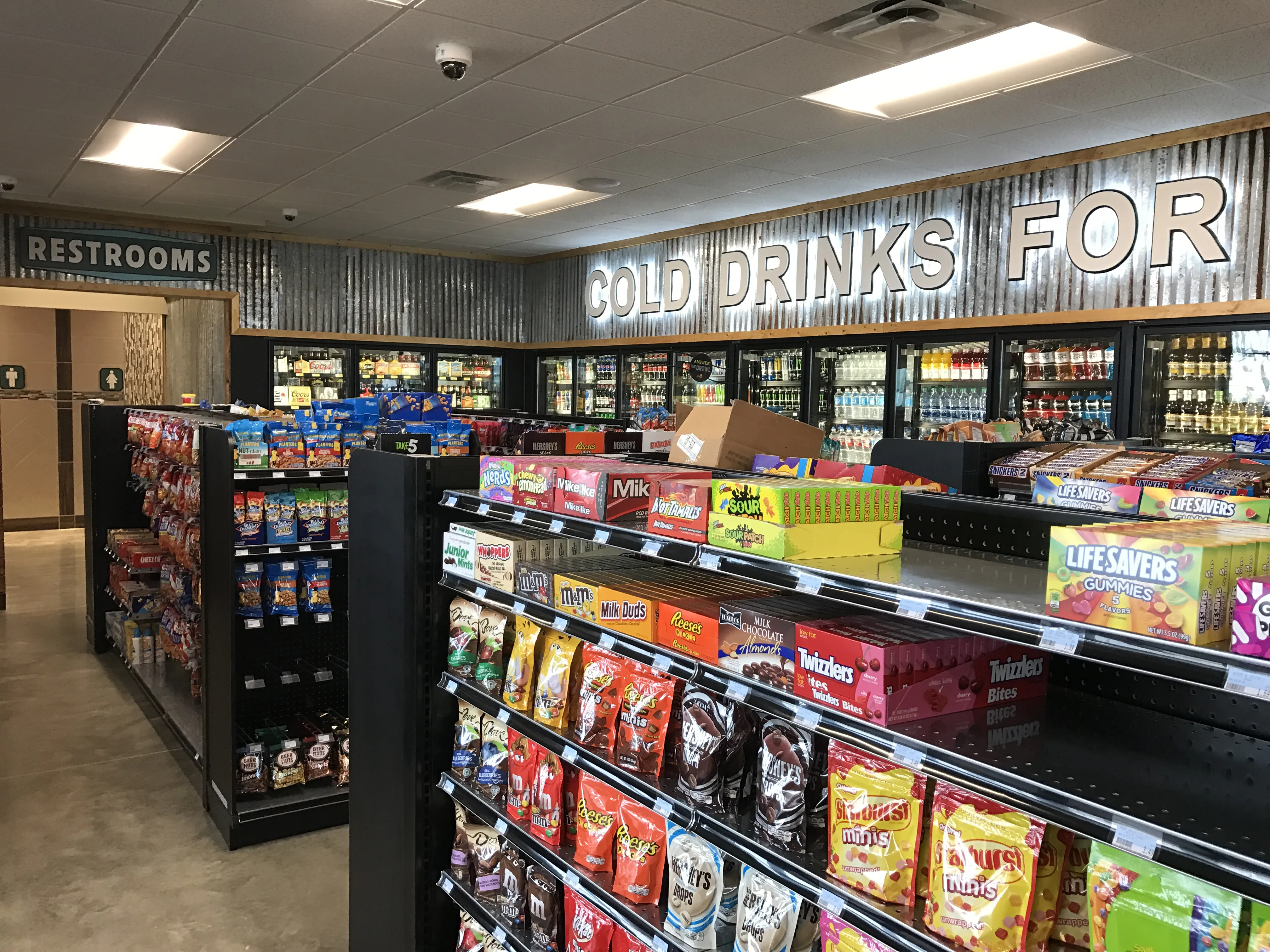

Convenience Store Design and Construction Step 13

Vendor Products, Voila!

This is a look once the vendors have set up their products. Having a specific arrangement for your products is critical for maintaining order in your store.

Convenience Store Design and Construction Step 10

The "Beer Shack" Beer Cave

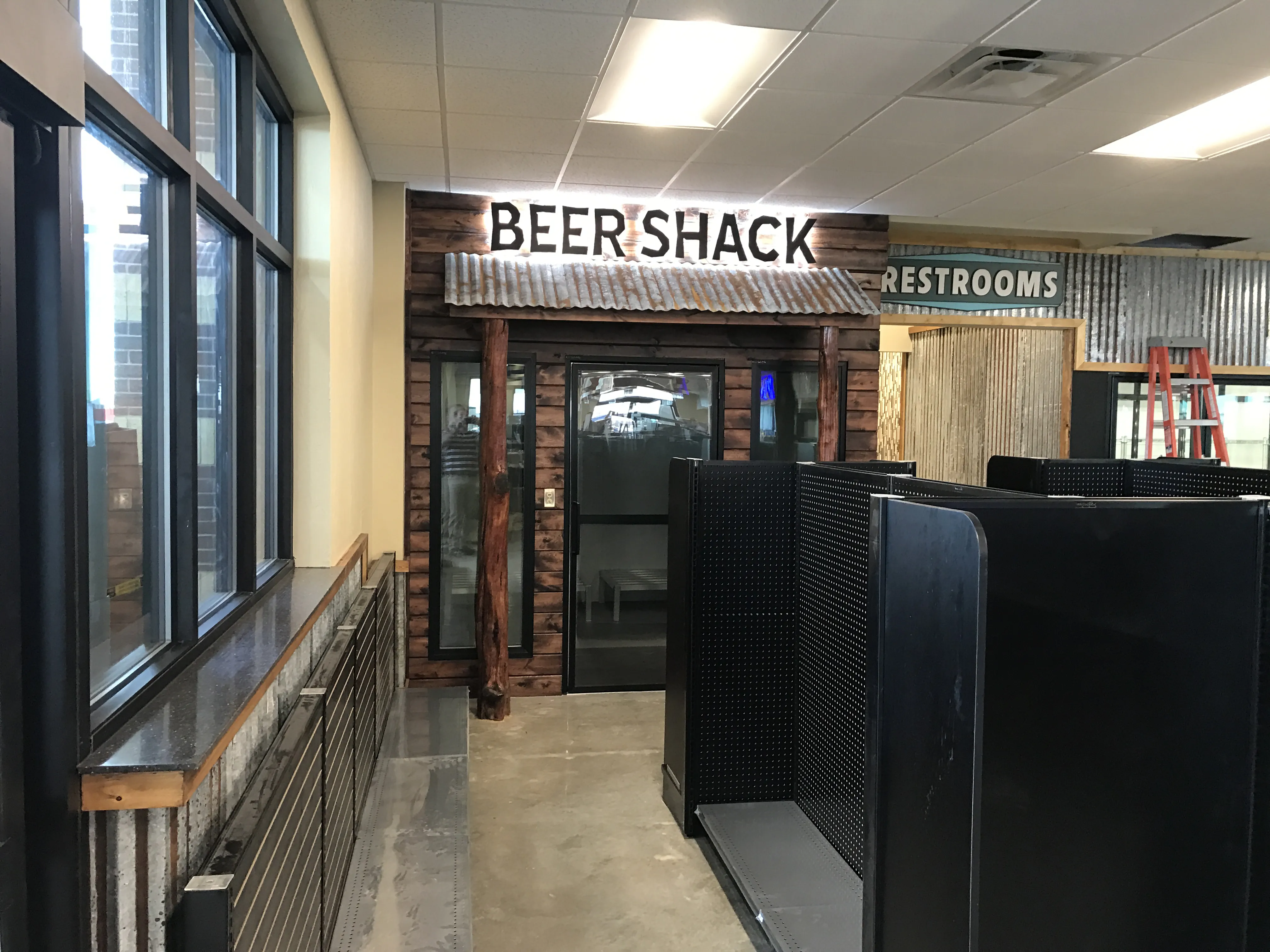

This is a picture of the “Beer Shack” commonly referred to as a beer cave. This type of walk-in holds the product inside at 28 degrees F which is the coldest temperature that beer can be stored without freezing. We used aged wood and a backlit sign above aged metal on cedar posts. The look is rustic and develops a finished look reflecting the taste of the owner!

Convenience Store Design and Construction Step 20

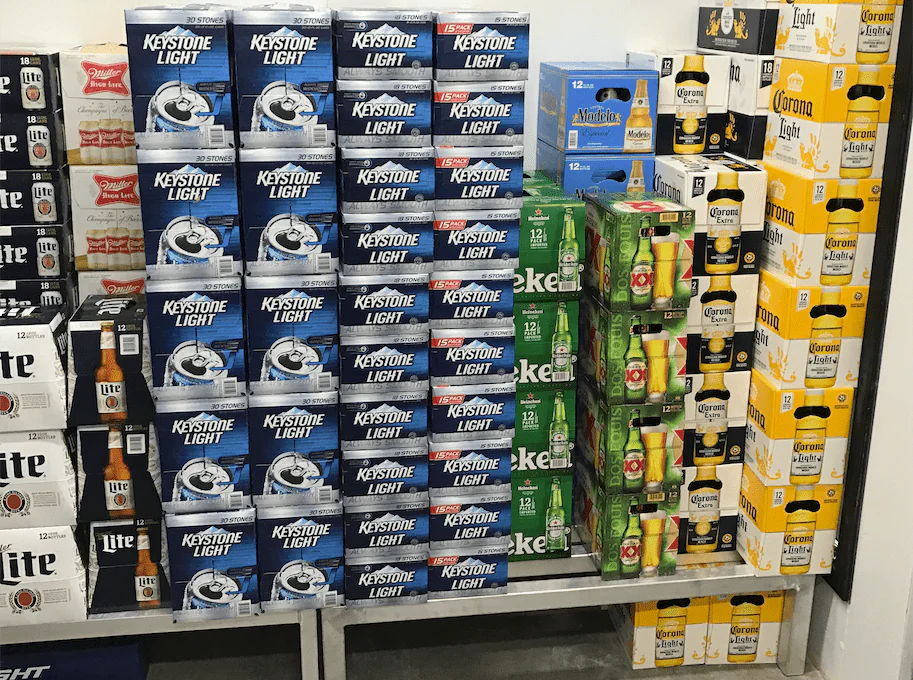

Beer Cave Dunnage Racks

Pictures from the inside of the beer cave showing the product placed on dunnage racks. The purpose of these racks is to enhance airflow and allow for cleaning! As you see, the Corona Man has elected to use it for storage below. This arrangement will not be acceptable by the Health Inspector, so be careful how you arrange your products!

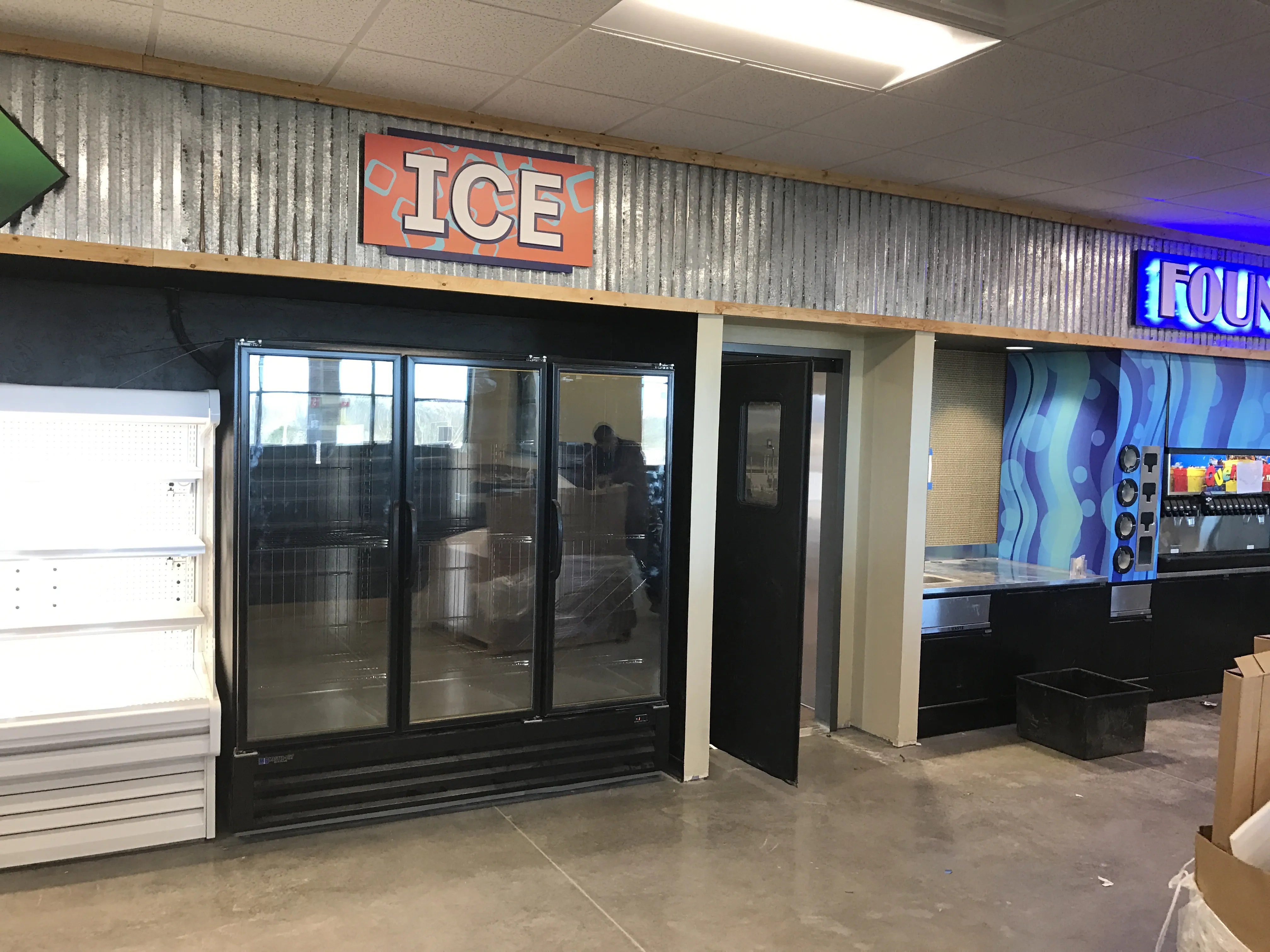

Convenience Store Design and Construction Step 12

Open Air Mechandiser

This picture shows the corner of the open-air merchandiser used for fresh produce that is setting alongside the glass door freezer used for ice and frozen food. Produce is something not normally seen in convenience stores but is becoming a popular item for snack cups and healthy alternatives to the common fried food offerings of C-Store cuisine. If you notice we have a very distinct contrast using white for this merchandiser. Some ask "Why?" Well, the reason is to draw your eye to this offering again not normally.

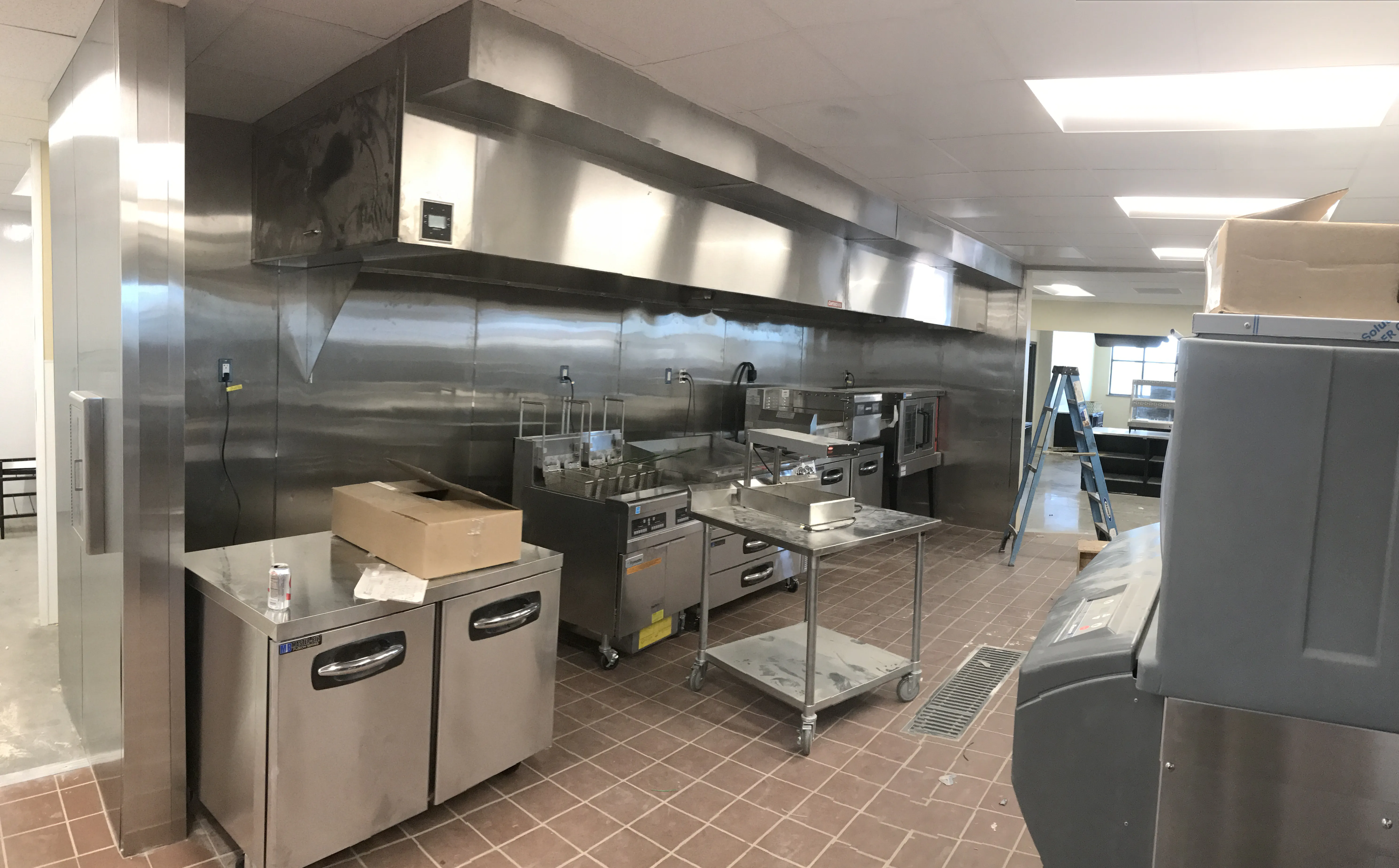

Convenience Store Design and Construction Step 8

Cookline and Cooking Equipment

This is a picture of the cookline showing the cooking equipment and the installation of the Vent Hood system. In this picture, we are assembling and setting the equipment for connection by the plumbing and electrical contractors. Once those connections are made and all of the equipment is in its place we final out the hood installation with Ansel and startup the appliances for final inspection by the Fire Marshall. Of course, we always take regard to the hood and cooking equipment.

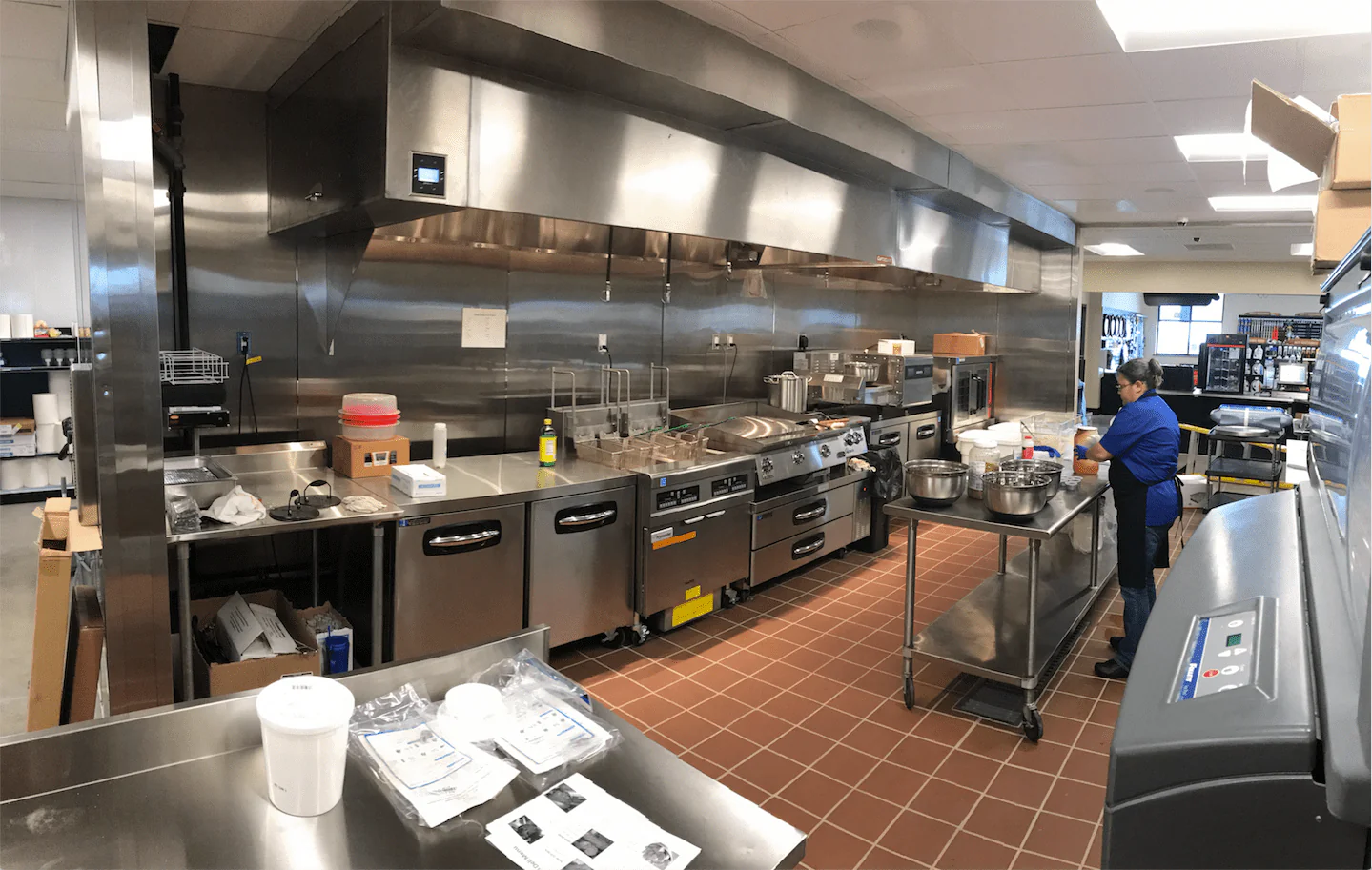

Convenience Store Design and Construction Step 21

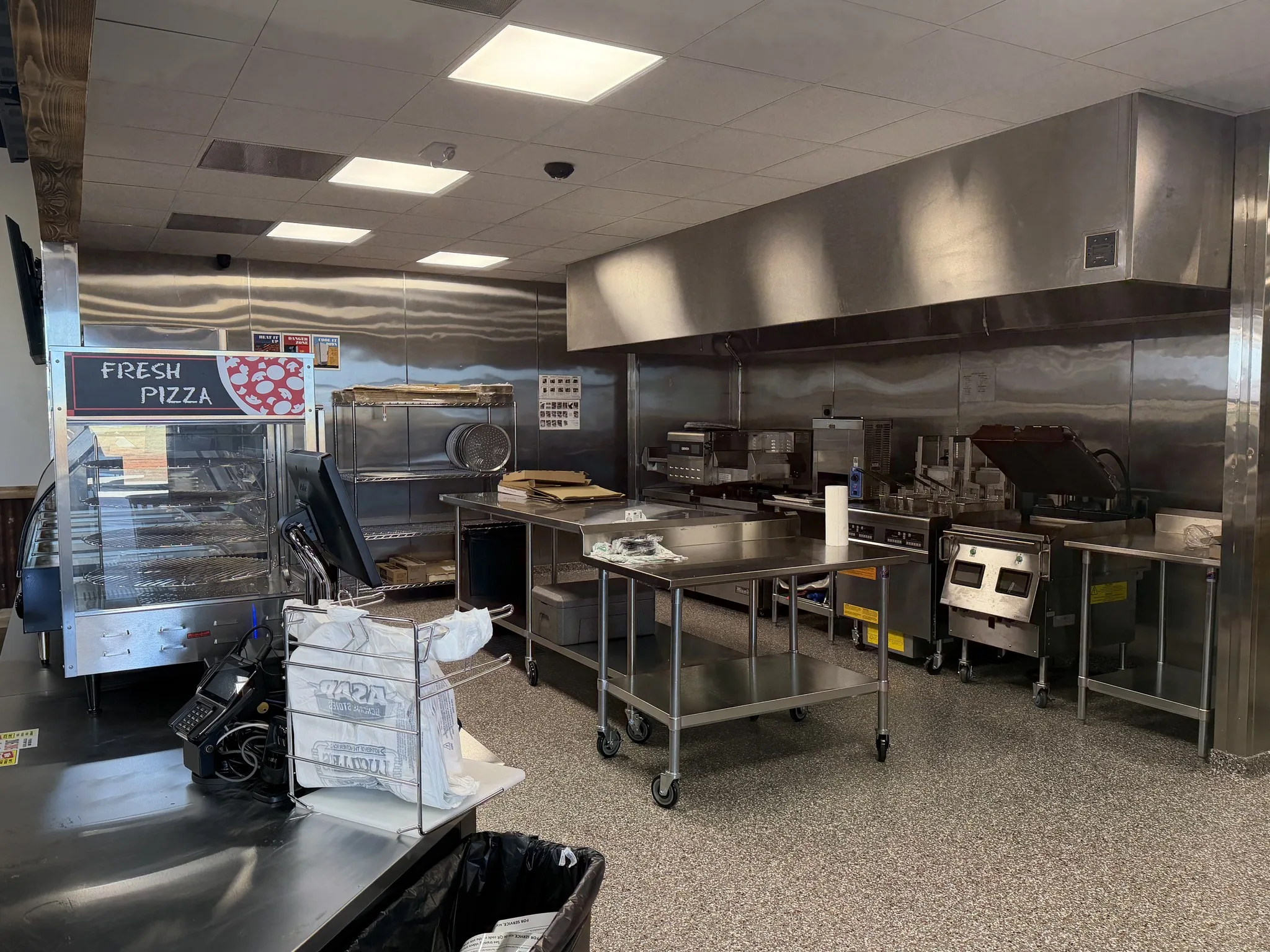

Lucille's Kitchen Ready for Opening

This is a look at the kitchen pre-opening while some test cooking is being done to prepare for Lucille’s menu!

Convenience Store Design and Construction Step 27

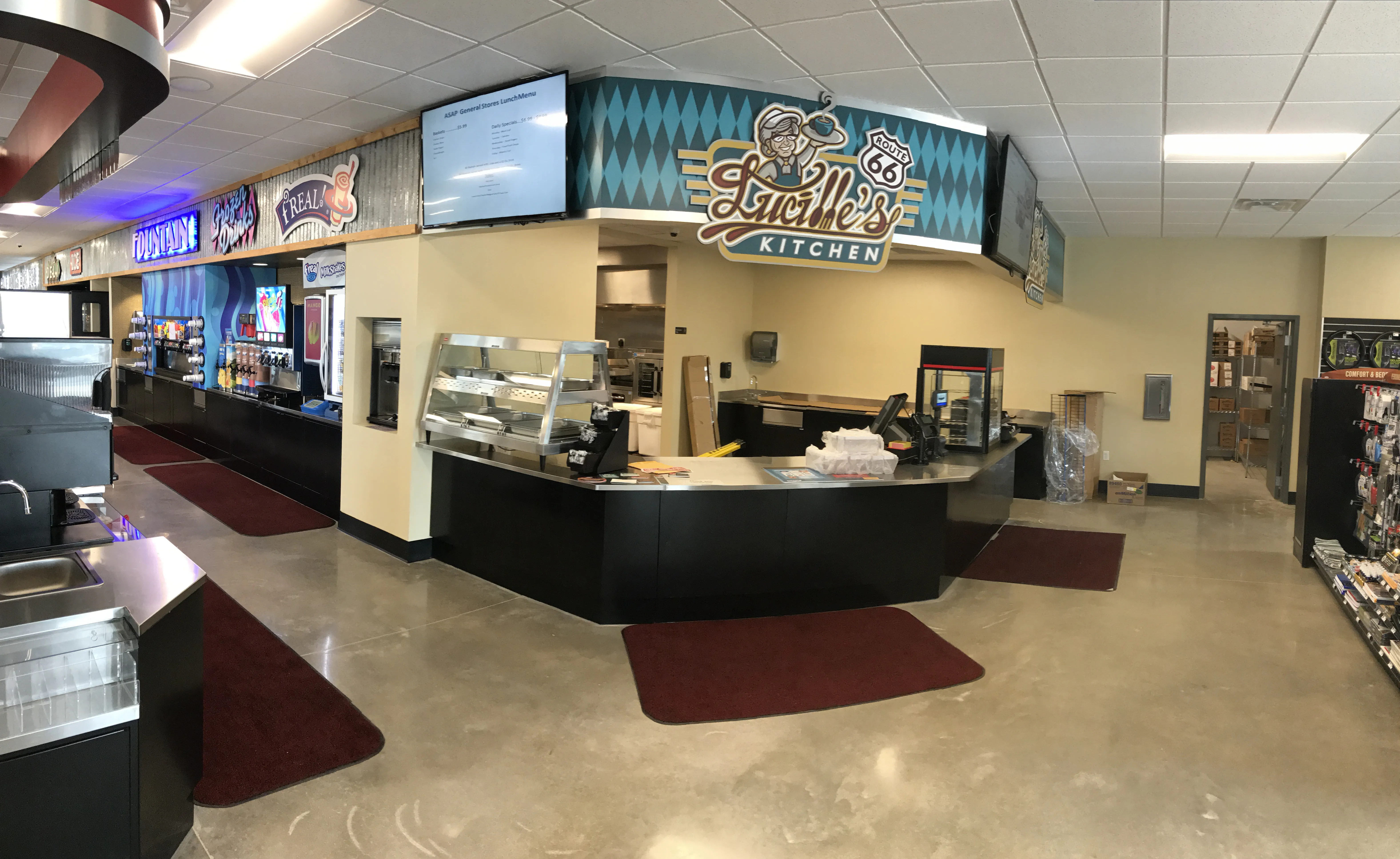

Snapshot of Lucille's Kitchen Area

This is a snapshot of Lucille’s Kitchen area with a panoramic view of the front graphics and color band stretching the length of the store! If you want to get a great graphic like this, give us a call.

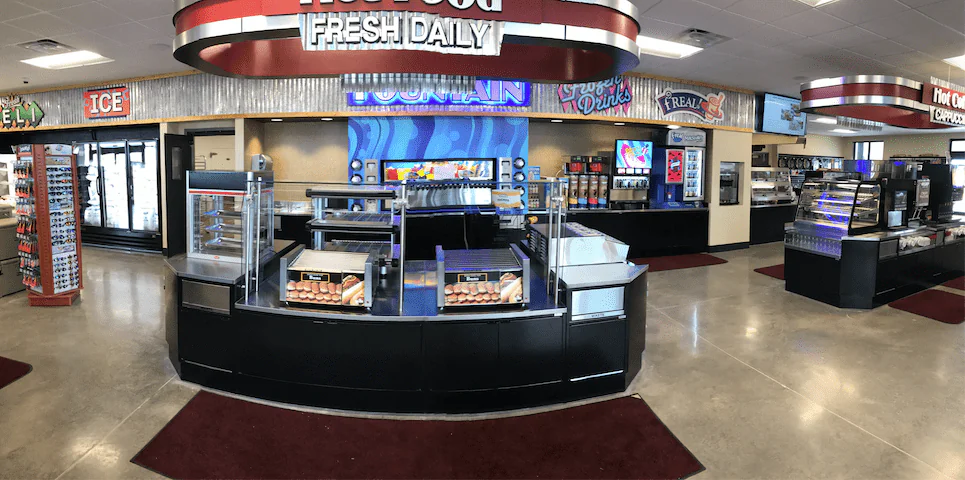

Convenience Store Design and Construction Step 23

Fresh Deli Offerings and Cappuccino Island

This is a shot of the Fresh Deli offerings and fountain areas which flows over to the coffee and cappuccino island and into the Lucille’s Diner area. From here, patrons can enjoy the fresh offerings from their extensive kitchen creations!

Convenience Store Design and Construction Step 16

Hot Coffee and Caps

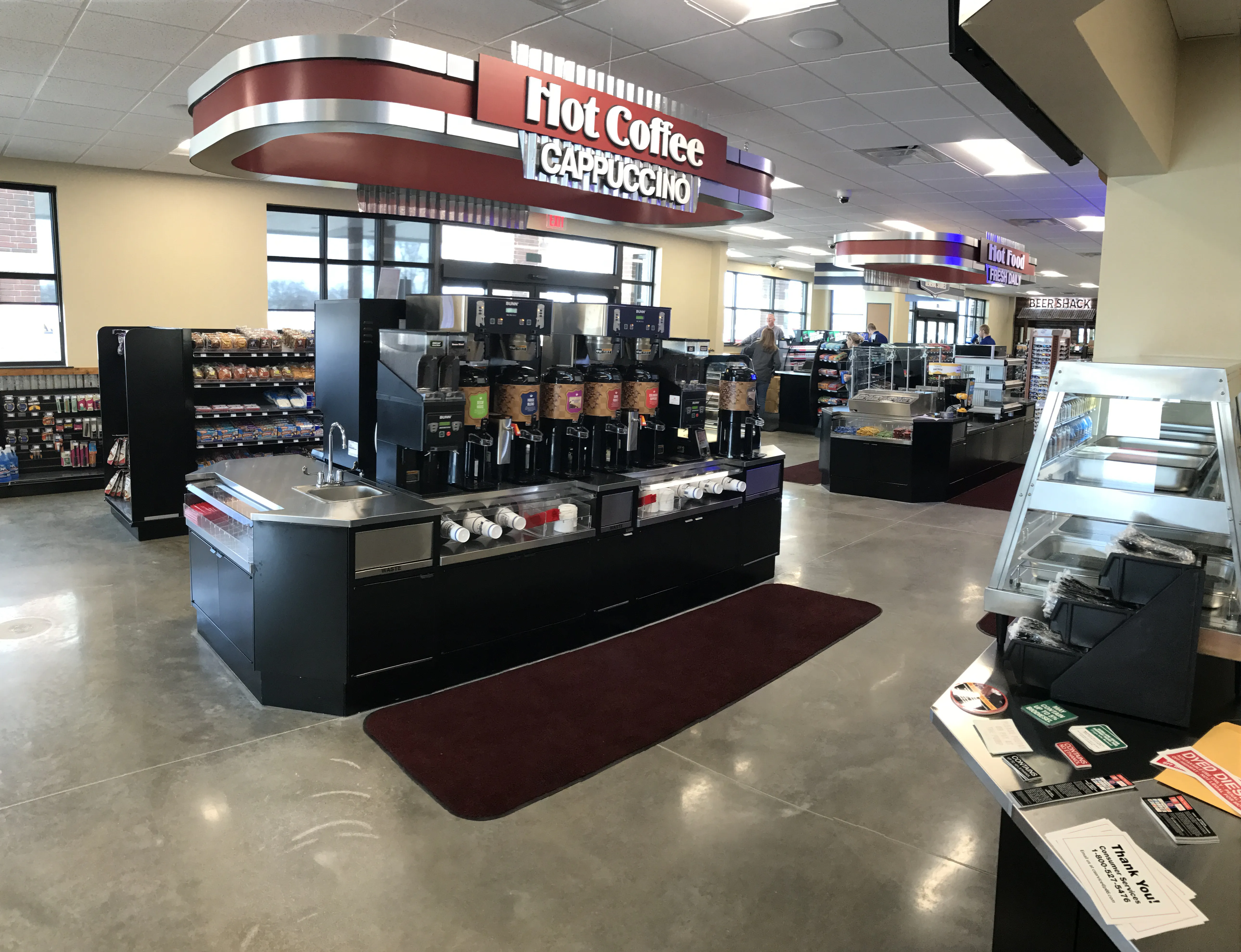

Hot coffee and cappuccino bars are always inviting for patrons!

Convenience Store Design and Construction Step 24

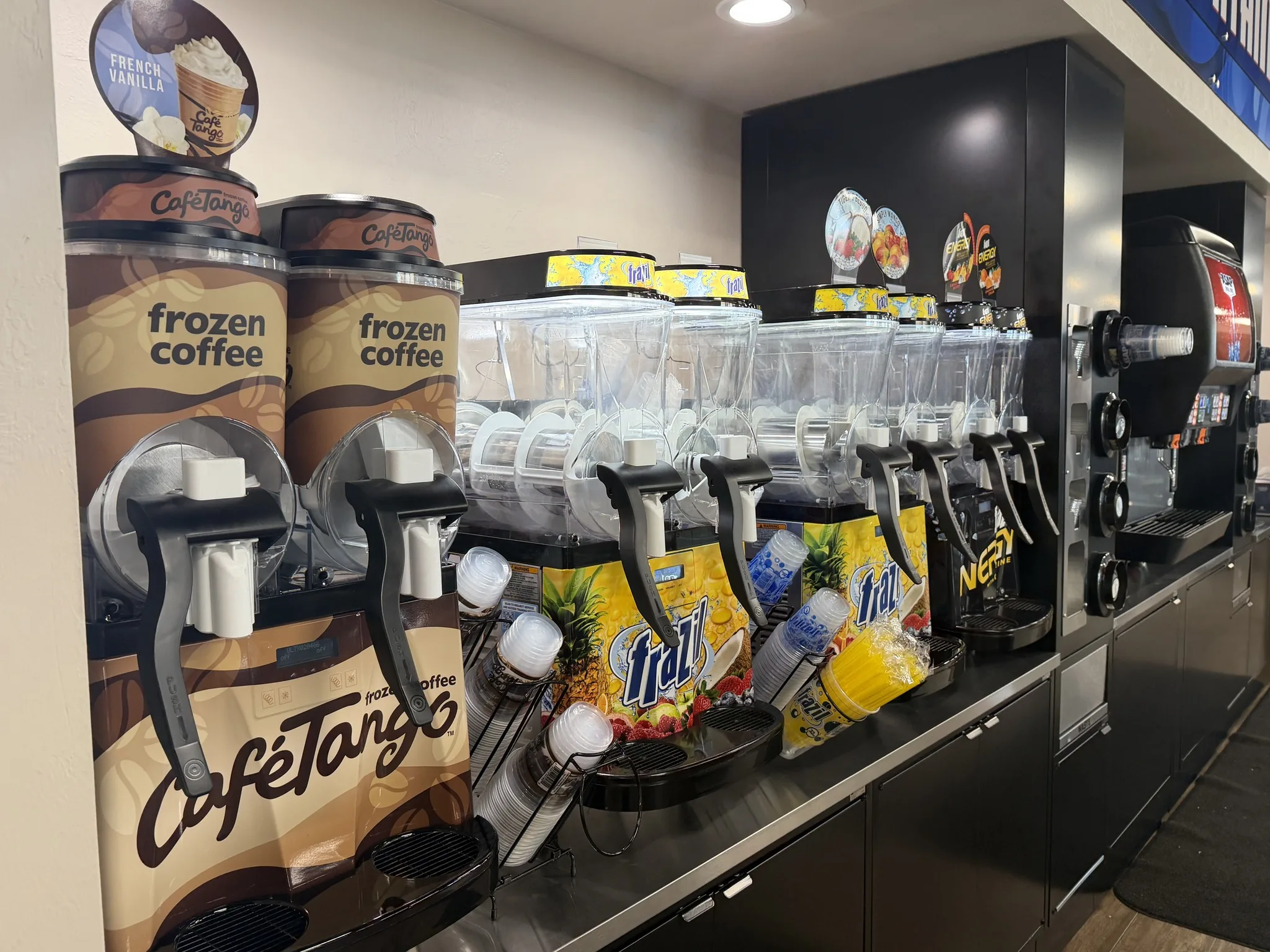

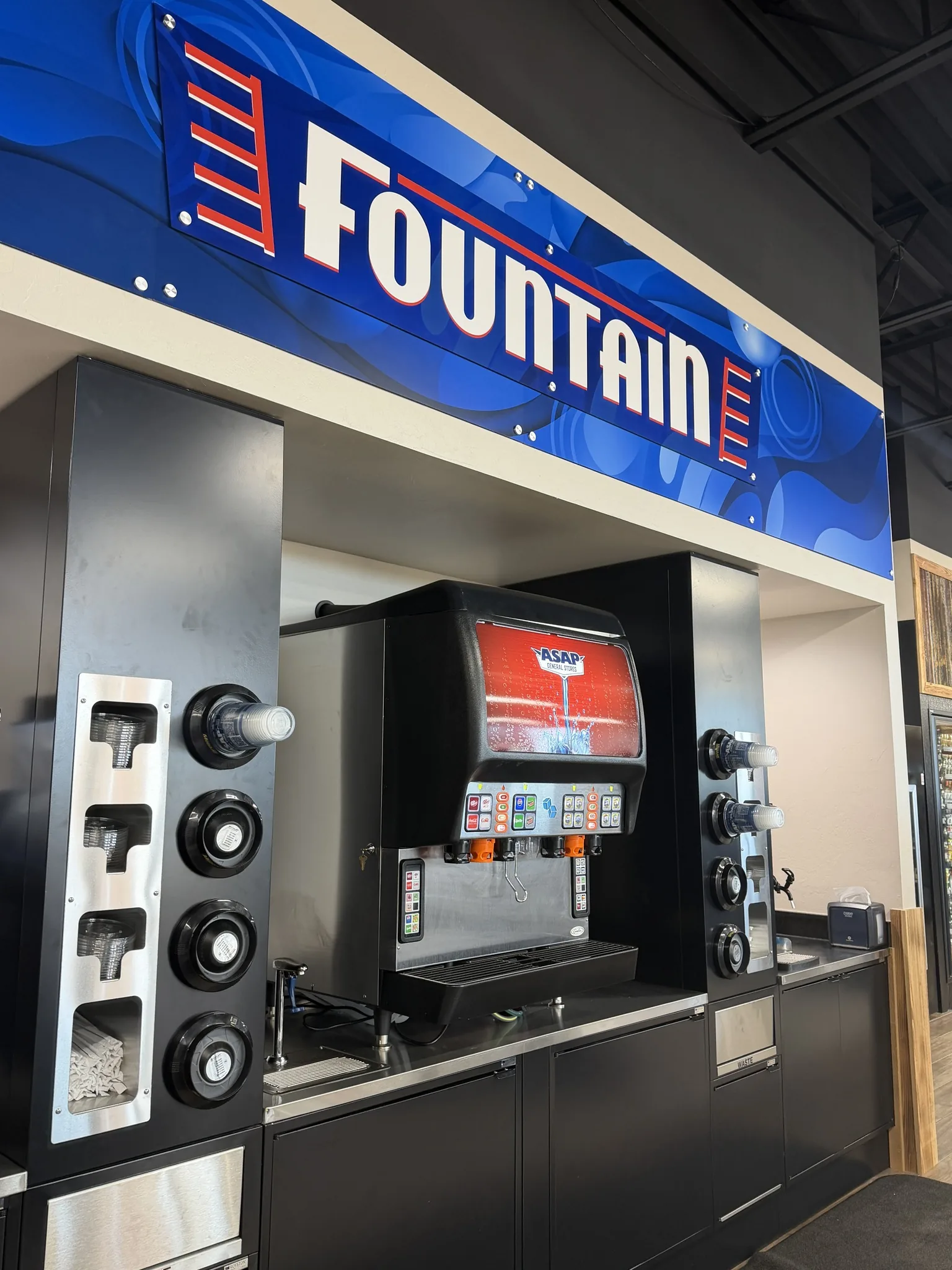

Fountain and Frozen Bar

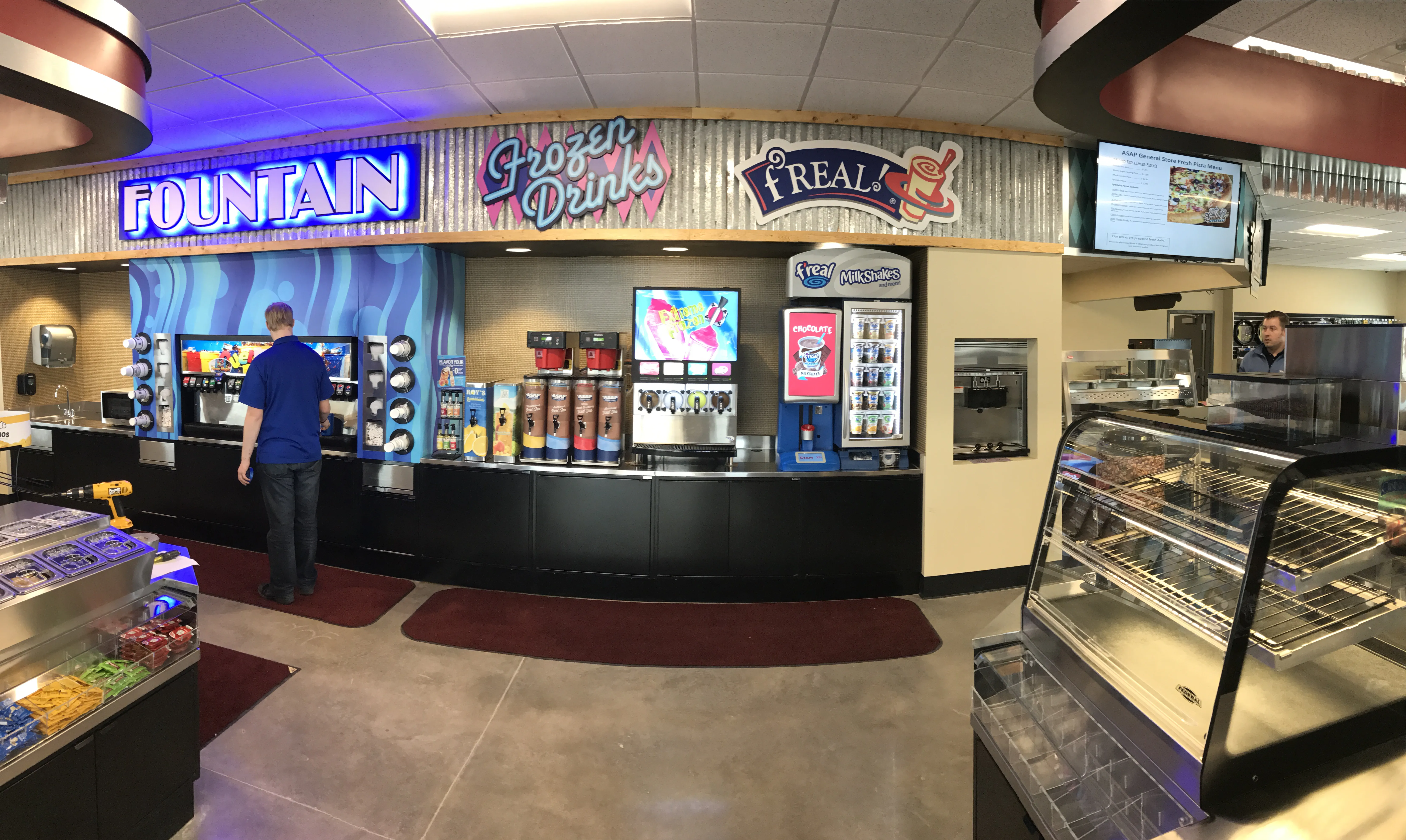

If you have a fountain drink and frozen bar, you need to ensure it is kept in the best shape possible. It needs to be nice, clean, and well presented.

Convenience Store Design and Construction Step 18

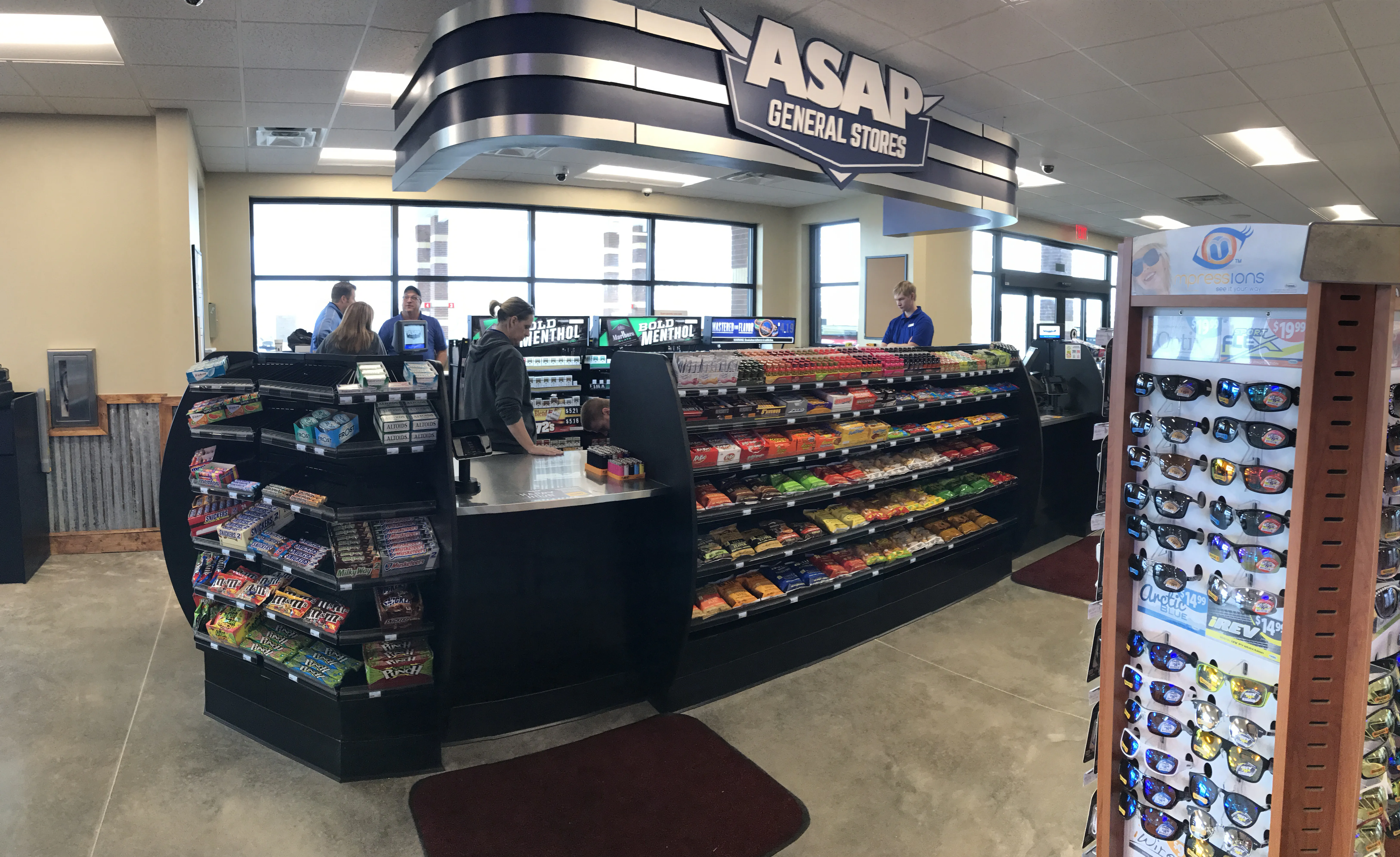

Cashier Area with Elevated Merchandisers

For the cashier area, we use elevated merchandisers to hide the day-to-day operations and create any impulse buy opportunities. This marketing idea is one that has been tried and proven to be very successful for store owners and we highly recommend them!

Convenience Store Design and Construction Step 11

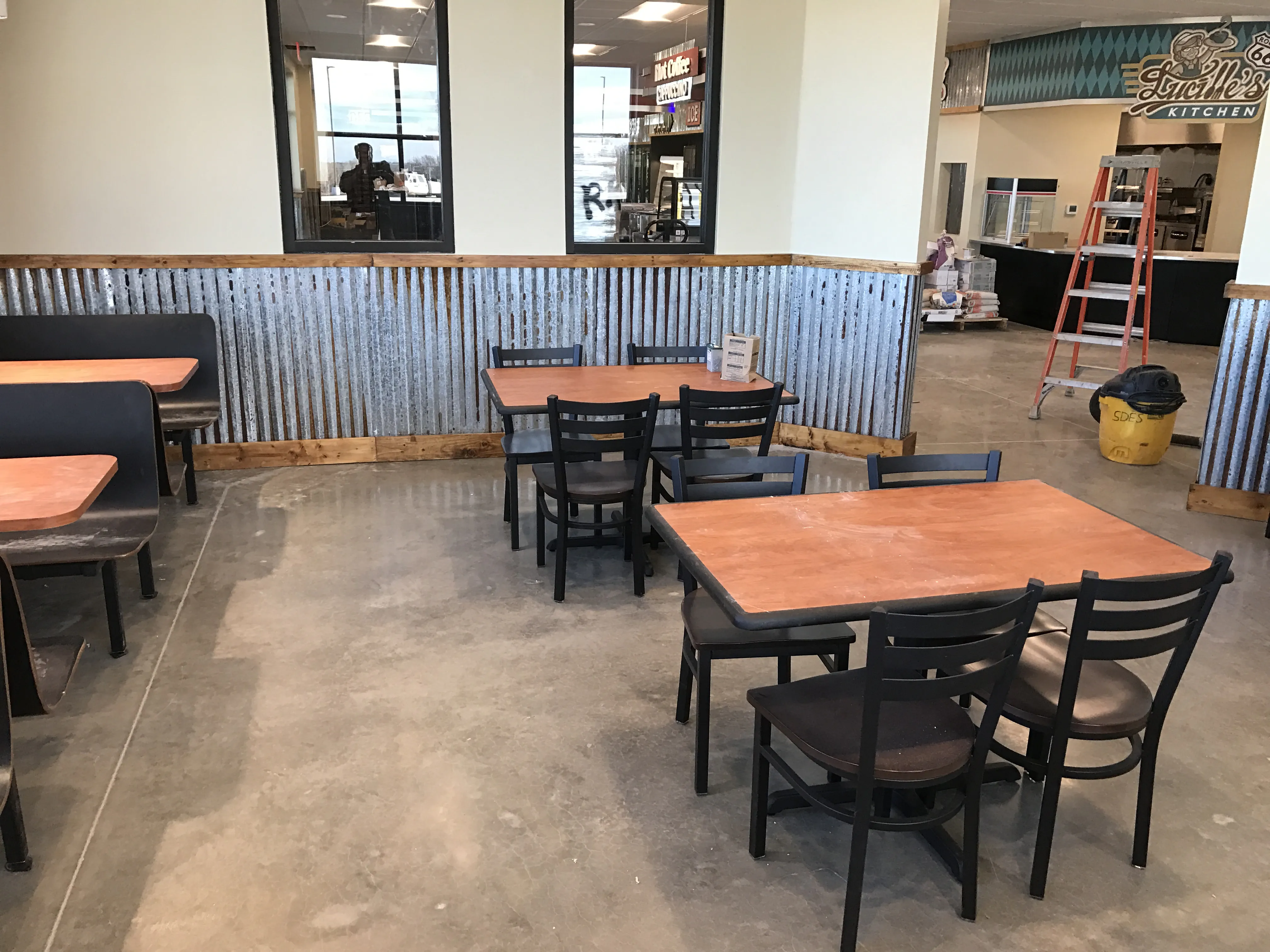

Seating Area

It is critical that any seating area you put in your convenience store is nice, clean, open, and away from the sales floor! After all, you don’t want your rush hour traffic slowed down by patrons who are taking time to eat at your place of business! This remote seating gets them away from your normal foot traffic flow and keeps rush hour patrons moving through the store at a quick pace.

Convenience Store Design and Construction Step 25

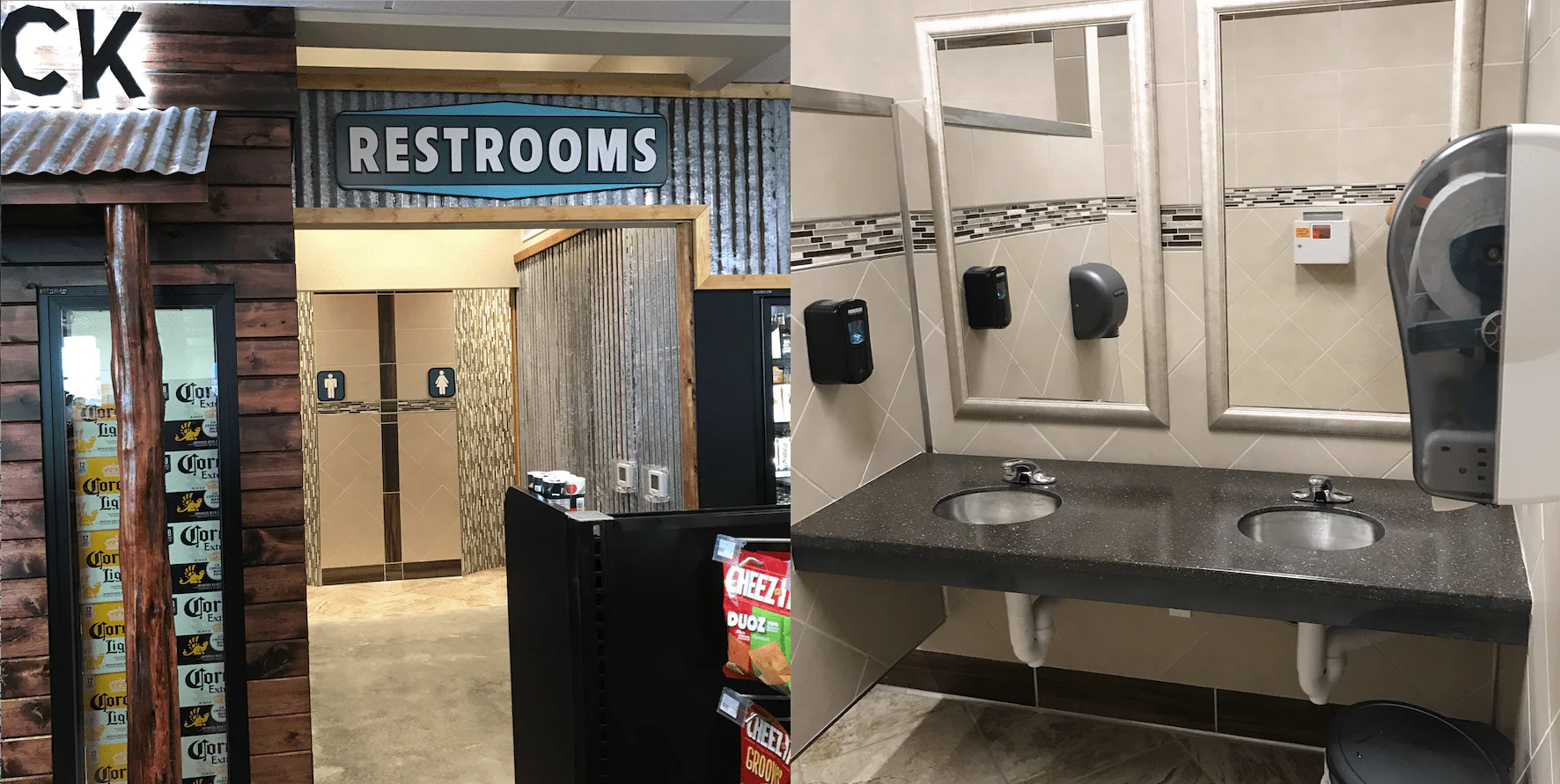

Accommodating Restrooms

Bathrooms are the single biggest error new store owners neglect. Customers need a clean, well-organized place to step into during their busy commute and we accommodate! We can help ensure that your bathroom is well lit, takes up adequate space, and is consistently clean!

Convenience Store Design and Construction Step 26

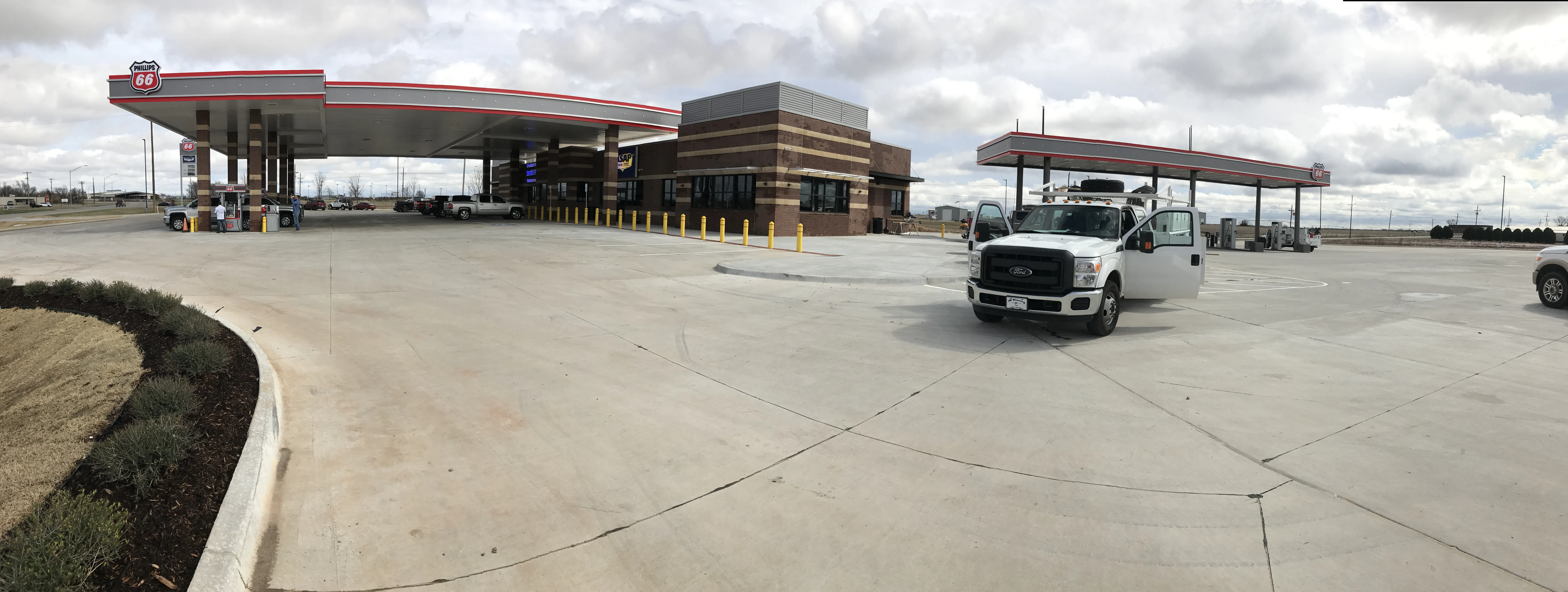

This is ASAP Energy!

If you are interested in learning more about our ASAP Energy project, call us today!

Convenience Store Design and Construction Step 27

READY FOR BUSINESS!

Let JayComp Development make your Convenience Store dreams a reality with our turn-key Store Development Packages. Don't risk making the mistakes that we know how to avoid!

Convenience Store Design and Construction Step 14
Convenience Store Design and Construction Step 15

READY FOR BUSINESS!

Let JayComp Development make your Convenience Store dreams a reality with our turn-key Store Development Packages. Don't risk making the mistakes that we know how to avoid! Give us a call today to learn more about how you can create the best convenience store floor plan with us here at JayComp Development.

Convenience Store Design and Construction Step 17

READY FOR BUSINESS!

Let JayComp Development make your Convenience Store dreams a reality with our turn-key Store Development Packages. Don't risk making the mistakes that we know how to avoid!
