Adding a commercial kitchen to your retail space drastically increases your revenue potential. Fresh, hot food attracts new customers and builds long-term loyalty. However, building a compliant commercial kitchen requires a deep understanding of heavy mechanical equipment, specifically your exhaust system.

When planning your layout, you will immediately face a critical engineering decision: do you need a Type 1 or a Type 2 vent hood? Making the wrong choice can lead to failed health inspections, massive fines, or catastrophic fire hazards.

This comprehensive guide breaks down the exact differences between Type 1 and Type 2 vent hoods. We will explore the mechanical components of each system, identify which specific pieces of cooking equipment require which hood, and explain how to integrate these massive fixtures into your building architecture.

Are you ready to build a safe, highly profitable commercial kitchen? Reach out to the experts at https://jaycompdevelopment.com/contact-us/ or call 877-843-0183 to discuss your project with our development team.

Understanding the Type 1 Vent Hood

A Type 1 vent hood is the heavy-duty workhorse of the commercial kitchen industry. Engineers design these hoods specifically to handle the most dangerous byproducts of commercial cooking: grease, smoke, and open flames.

When you cook food involving animal fats or cooking oils at high temperatures, the process releases highly flammable, grease-laden vapors into the air. If you do not capture these vapors immediately, they settle on your walls, ceilings, and retail merchandise. More importantly, these accumulated grease particles create a severe fire hazard.

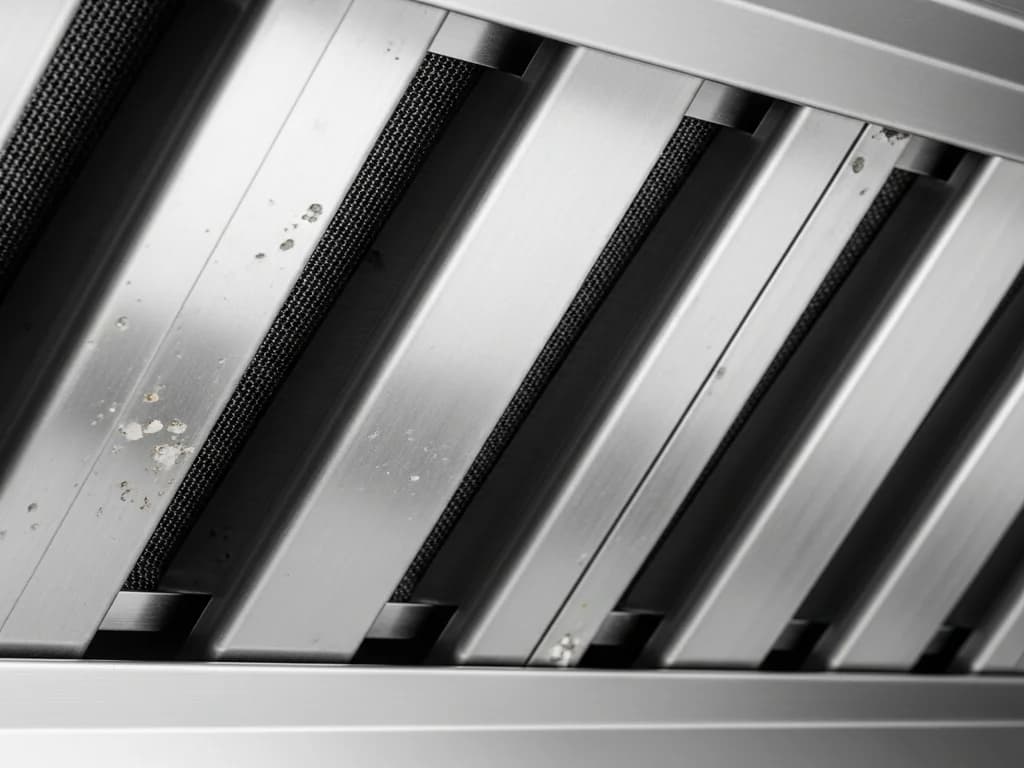

Type 1 hoods utilize complex, high-velocity exhaust fans to pull these hazardous vapors out of the cooking area. Before the air enters the ductwork, it passes through specialized baffle filters. These filters force the air to change direction rapidly. Because grease particles are heavier than air, they cannot make the sharp turns and crash into the metal baffles, safely draining away into a collection cup.

Integrated Fire Suppression

The most defining feature of a Type 1 hood is its mandatory fire suppression system. Because these hoods extract highly combustible materials, local fire codes and the National Fire Protection Association (NFPA) require a built-in defense mechanism.

If a grease fire erupts on the cooking surface below, thermal sensors inside the hood detect the rapid spike in temperature. The system automatically deploys a wet chemical extinguishing agent directly onto the flames while simultaneously shutting off the gas or electric supply to the cooking equipment. This immediate, automated response prevents the fire from spreading into the exhaust ductwork and consuming the entire building.

Equipment Requiring Type 1 Hoods

You must install a Type 1 hood over any piece of equipment that produces grease or smoke. There are no exceptions to this rule. Standard equipment requiring a Type 1 system includes:

Deep Fryers: Frying chicken, french fries, or donuts releases massive amounts of atomized oil into the air.
Flat Top Grills and Griddles: Cooking burgers, bacon, or eggs generates heavy grease runoff and smoke.
Charbroilers: Cooking raw meat directly over an open flame creates intense smoke and high-risk grease flare-ups.
Woks: High-heat oil cooking requires powerful, rapid extraction.
Some Pizza Ovens: If you cook pizzas with heavy meat toppings that release grease, local inspectors may classify the oven as grease-producing.

To learn more about how these hoods fit into your overall food service strategy, review our overarching guide to https://jaycompdevelopment.com/commercial-vent-hoods/.

Understanding the Type 2 Vent Hood

While Type 1 hoods handle grease and smoke, Type 2 vent hoods manage heat, steam, condensation, and general food odors. They do not extract flammable grease.

Because they deal with non-combustible byproducts, Type 2 hoods are mechanically simpler. They do not require complex grease baffle filters. Instead, they act as massive exhaust fans, pulling hot, moist air out of the kitchen to keep the environment comfortable for your employees and customers.

Removing this moisture is critical for the structural integrity of your building. If you allow heavy steam to accumulate in your kitchen, it will eventually cause massive water damage. Ceiling tiles will sag, mold will grow rapidly, and metal fixtures will rust. A properly sized Type 2 hood pulls this moisture out of the building before it can condense on your surfaces.

No Fire Suppression Required

Because Type 2 hoods do not extract flammable grease vapors, they do not require integrated fire suppression systems. This makes them significantly cheaper to purchase and much easier to maintain.

Furthermore, the ductwork requirements for Type 2 hoods are less stringent. Type 1 hoods require heavy-gauge, liquid-tight welded steel ducts to prevent grease leaks. Type 2 hoods can utilize standard galvanized sheet metal ductwork, drastically reducing your material and installation costs.

However, you must never use a Type 2 hood over grease-producing equipment. If a health inspector or fire marshal catches you frying chicken under a Type 2 hood, they will shut your operation down immediately.

Equipment Requiring Type 2 Hoods

You typically install Type 2 hoods over equipment that boils water, bakes bread, or washes dishes. Common equipment requiring a Type 2 system includes:

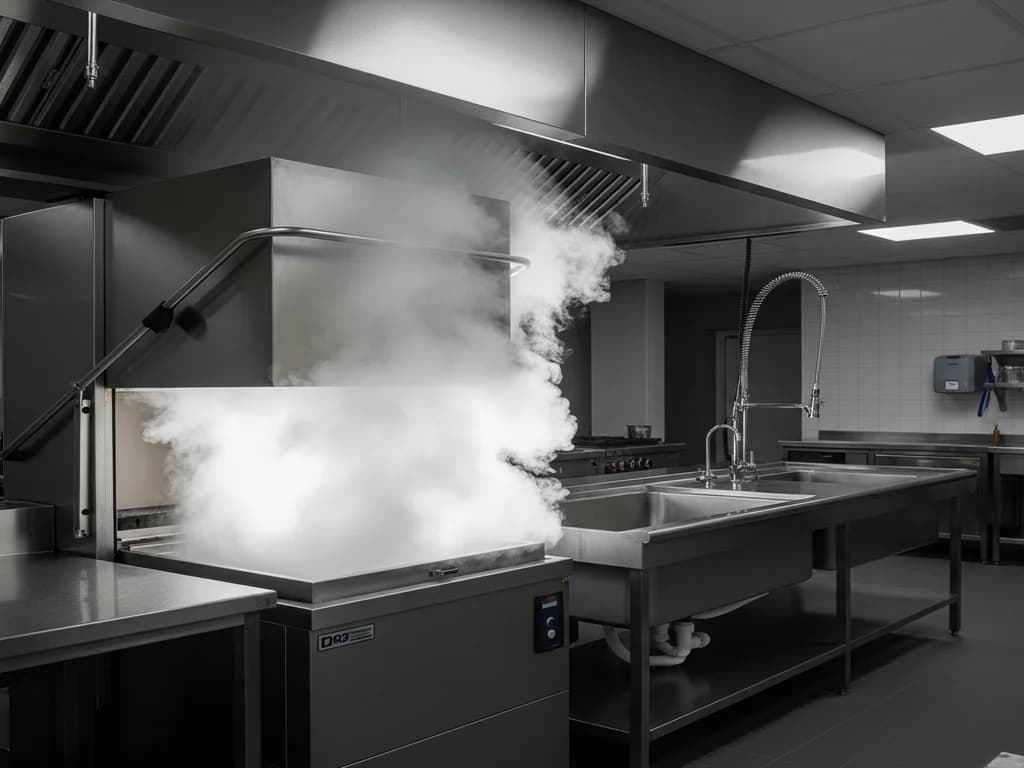

Commercial Dishwashers: High-temperature dishwashers release a massive cloud of heavy steam every time you open the doors.
Pasta Cookers and Soup Kettles: Boiling large volumes of water requires targeted moisture extraction.
Coffee Roasters: Roasting beans produces intense heat and strong odors, but no grease.
Standard Baking Ovens: Baking bread, pastries, or non-greasy foods generates heat and odor that must be managed to maintain a comfortable kitchen temperature.

If you are unsure how to classify your specific menu items, we can help. Call 877-843-0183 or visit https://jaycompdevelopment.com/contact-us/ for a professional equipment consultation.

Key Differences in Ductwork and Airflow

The differences between these two hood types extend far beyond the stainless steel canopy hanging in your kitchen. They require entirely different mechanical infrastructure hidden behind your walls and above your ceilings.

Type 1 Heavy-Gauge Ductwork

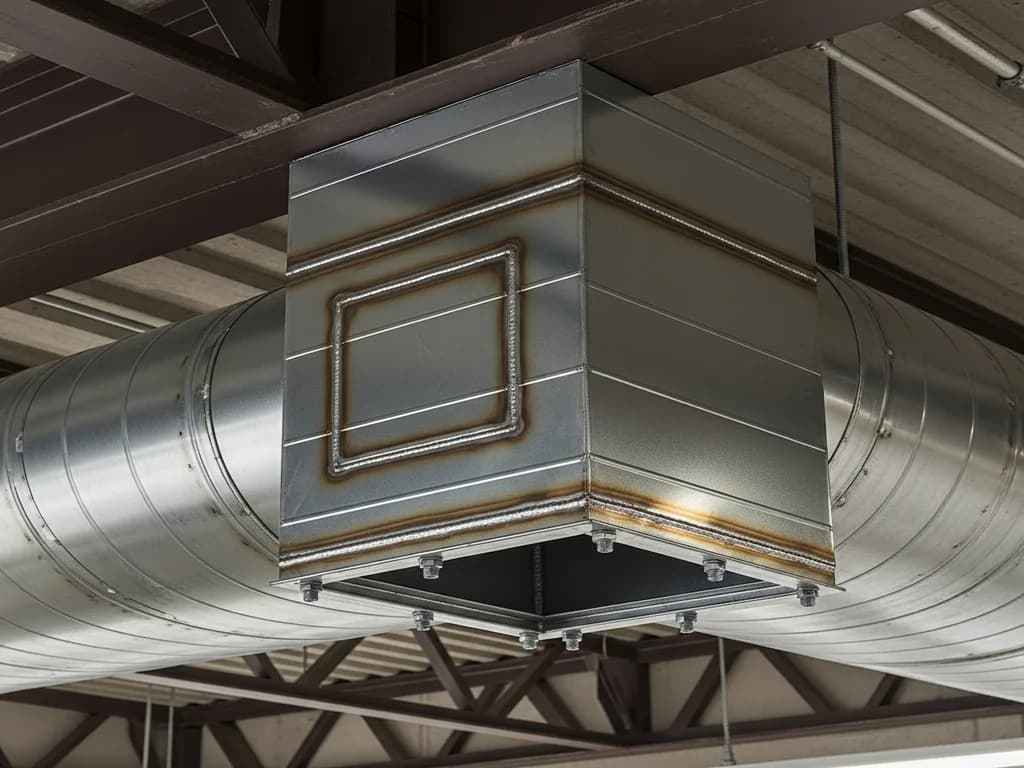

Type 1 ductwork is built to contain a fire. Fire codes dictate that this ductwork must be constructed from heavy-gauge carbon steel or stainless steel. Every single seam and joint must be continuously welded liquid-tight. This ensures that if the grease inside the ductwork catches fire, the flames and intense heat remain trapped inside the steel tube until they exhaust out the roof, protecting the combustible wood or drywall surrounding it.

Furthermore, Type 1 ducts require specialized access panels installed at regular intervals. Certified hood cleaning companies use these panels to scrape and power-wash the inside of the ducts, removing the highly flammable grease buildup.

Make-Up Air Systems

Both Type 1 and Type 2 hoods pull thousands of cubic feet of air out of your building every minute. You cannot exhaust this much air without replacing it. If you do, your building experiences severe negative air pressure.

Negative pressure pulls unconditioned outside air through the cracks in your doors and windows, destroying your energy efficiency. It also prevents the vent hood from functioning correctly, causing smoke to spill out from under the canopy into the store.

To prevent this, you must install a make-up air (MUA) unit. The MUA pumps fresh air back into the kitchen at the exact same rate the hood exhausts it. Because Type 1 hoods generally operate at higher exhaust velocities to pull heavy grease, their MUA requirements are often much larger and more complex to engineer than those for Type 2 hoods.

Navigating Vent Hood Codes and Compliance

The commercial kitchen exhaust industry is heavily regulated. You must navigate a complex web of local, state, and federal codes before you can serve your first hot meal.

The National Fire Protection Association (NFPA) sets the baseline standards for Type 1 hoods through NFPA 96. This code dictates everything from the specific thickness of your steel ductwork to the exact clearance you must maintain between your hood and the ceiling joists.

Simultaneously, local health departments enforce their own sanitation standards. They ensure your hood canopy features smooth, seamless construction so bacteria and grease cannot hide in dark crevices. They also dictate the lighting requirements under the hood to ensure your cooks have adequate visibility.

Attempting to navigate these overlapping jurisdictions without professional guidance frequently leads to failed inspections and forced remodels. For a detailed breakdown of these complex regulations, read our comprehensive guide on https://jaycompdevelopment.com/vent-hood-requirements/.

The Importance of Professional Installation

You cannot install a commercial vent hood yourself. The process involves hanging thousands of pounds of steel, welding liquid-tight ductwork, penetrating the roof membrane, and wiring intricate fire suppression control panels.

A flawed installation invites disaster. If a weld on a Type 1 duct fails, grease will slowly leak into your ceiling cavity. Over time, this creates a hidden, highly combustible fuel source directly above your customers' heads. If the fire suppression system is wired incorrectly, it will fail to deploy when you need it most.

Professional installation requires coordinating mechanical engineers, licensed electricians, specialized welders, and certified fire suppression technicians. To understand the timeline and complexity of this process, explore our guide on https://jaycompdevelopment.com/vent-hood-installation/.

Integrating Hoods into Your Store Layout

A commercial vent hood dictates the entire layout of your kitchen. Because the ductwork must route directly to the roof, you cannot simply place your cooking equipment anywhere you want.

When planning your layout, you must position the kitchen where roof penetration is structurally feasible and where the exhaust fan will not violate local noise ordinances or blow grease onto neighboring properties.

This requires expert architectural planning from the very beginning of your project. The kitchen must flow logically, allowing cooks to pivot easily from the prep tables to the fryers under the Type 1 hood, and then to the sinks located under the Type 2 hood.

For broader strategies on maximizing your retail square footage, review our ultimate guide to https://jaycompdevelopment.com/convenience-store-design/.

Partner with the Kitchen Design Experts

Choosing between a Type 1 and Type 2 vent hood is just the first step in a highly complex mechanical engineering process. You must size the hood correctly, design the make-up air system, navigate fire codes, and manage highly specialized construction crews.

At Jaycomp Development, we specialize in building safe, compliant, and incredibly profitable commercial kitchens. We understand the precise mechanical requirements of modern food service. From drafting the initial CAD blueprints to coordinating the final fire marshal inspection, we serve as your single point of contact for the entire development lifecycle.

We ensure your equipment matches your menu perfectly, preventing you from overspending on unnecessary infrastructure while guaranteeing total regulatory compliance.

Do not risk your investment on guesswork. Partner with the industry leaders to build a commercial kitchen that drives your revenue to new heights.

Take the next step toward a more profitable retail space.
Reach out to our team today via our contact page at https://jaycompdevelopment.com/contact-us/ or call our development specialists directly at 877-843-0183 to schedule your initial design consultation. Let us build the future of your business together.

Brands We Specify

JayComp Development specifies and installs proven commercial equipment brands across our convenience-store, food-service, and refrigeration projects:

Captive Air — commercial vent hoods, makeup air systems, and exhaust solutions for kitchens and food service.

Brand selection on every project is engineered to the application — cooler thermal load, hood CFM, store square footage, and local code — not a one-size-fits-all spec sheet.

Why These Brands

Vent hoods are Captive Air — Type I and Type II hoods with matching make-up air systems, sized to the cooking equipment under them.
