Commercial Vent Hood Installation: The Actual Process

A commercial vent hood installation is one of the most trade-dense phases of a food service buildout. Mechanical contractors, licensed electricians, certified welders, fire suppression technicians, and the roofing contractor all have to show up in the right order, hit their marks, and hand off cleanly to the next trade. Any one of them out of sequence and the install stalls.

This guide walks through exactly how a commercial vent hood installation actually gets built — the site prep, the sequence of trades, the inspection coordination, and the common failure modes we see on projects that weren't managed as a unified scope. JayComp Development has been specifying and installing Captive Air commercial vent hoods across 24+ years and 2,500+ completed projects. We manage the full multi-trade scope as a single project on every install we do. Call our team at 877-843-0183 or reach out through our contact page for a project evaluation.

Why Installation Is Where Most Hood Projects Fail

A correctly specified Captive Air hood sitting on a pallet is a compliant piece of equipment. The question is whether it ends up installed compliantly — and that answer depends entirely on the execution on site.

Common failure modes from installations that weren't professionally managed:

• Ductwork welds that don't meet NFPA 96. A single failed weld on a grease duct is a concealed fire hazard. No inspection catches this until there's a fire.
• Fire suppression wired backwards. System deploys but doesn't cut fuel supply. Fire keeps burning. Insurance and inspection both fail.
• Make-up air not balanced. Hood runs negative-pressure, smoke spills into retail space, fire marshal fails the walkthrough.
• Roof penetration not sealed correctly. Water leak into ceiling cavity within the first rainstorm. Roof warranty voided.
• Clearance violations. 18-inch clearance requirement missed during rough-in, entire duct run requires re-work with fire-rated wrap.
• Permits pulled in the wrong sequence. Inspector arrives to a site that isn't ready for them, walks away, reschedule delay of two to four weeks.

Every one of these is avoidable with proper project management. We avoid them by managing all trades as one coordinated scope under one project manager.

Pre-Installation: Site Assessment and Design

Before equipment ships, we execute a detailed site assessment:

• Ceiling height and structural capacity. Commercial hoods weigh hundreds to thousands of pounds. We verify the structure can support the load or engineer supplemental reinforcement.
• Roof type, age, and penetration feasibility. Single-ply membrane, built-up, or metal roofs each require different penetration approach. Existing rooftop equipment affects where the new exhaust fan can go.
• Electrical panel evaluation. Hood lighting, exhaust fan, MUA unit, and fire suppression controls each need dedicated circuits. We calculate total load and coordinate service upgrades if needed.
• HVAC system interaction. The existing HVAC has to coexist with the new MUA unit without fighting it. We evaluate airflow balance as a whole-building system.
• Clearance survey. 18-inch clearance to combustibles for Type 1 grease duct is verified through the proposed route. Wherever the route can't meet clearance, we spec fire-rated duct wrap into the scope.

This site assessment informs the permit submission, the equipment order, and the trades schedule. For the full code-level detail on what the design has to satisfy, see our vent hood requirements guide.

Phase 1: Permit Submission and Trade Scheduling

We submit the permit package to the local authorities before equipment ships — building, mechanical, electrical, and fire protection permits, plus health department sanitation design review for food service applications.

Permit review timing varies by jurisdiction. During review, we lock in the trade schedule: mechanical contractor for hood and duct, roofer for penetration and curb, electrician for circuits and controls, fire suppression tech for the suppression package, and the balancing technician for final MUA commissioning.

Phase 2: Structural Preparation and Roof Penetration

Before the hood itself arrives on site, the building has to be ready to receive it.

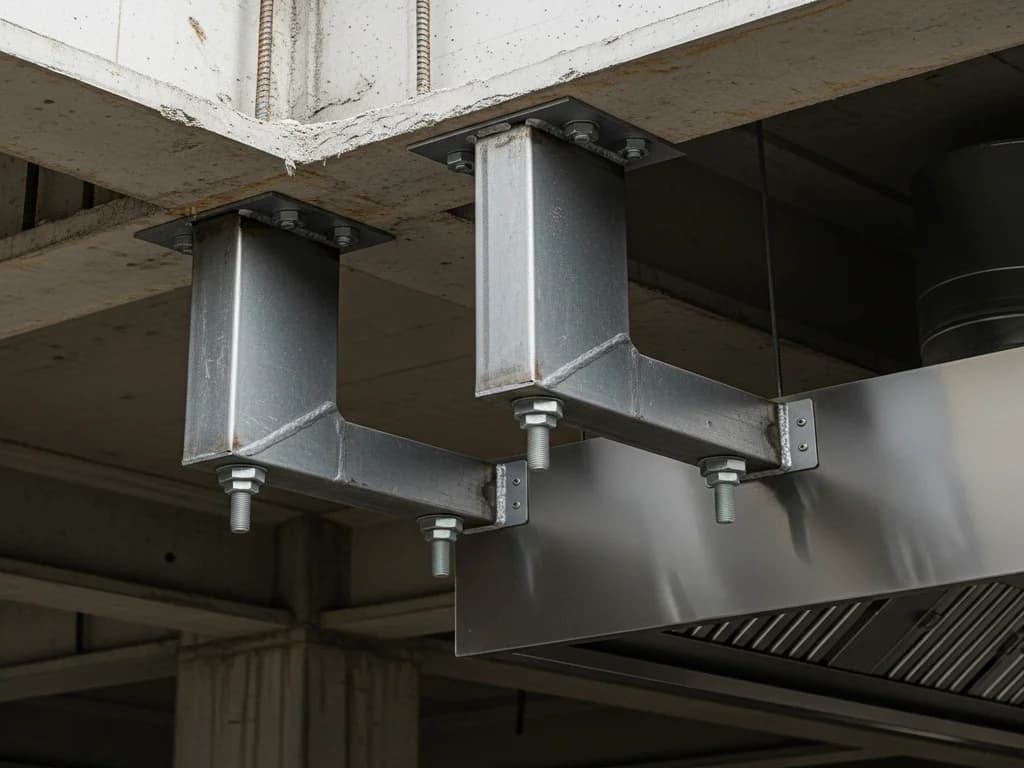

Structural reinforcement. If site assessment flagged insufficient ceiling structure to carry the hood, the mechanical contractor installs supplemental steel framing. This may include bolting supports into primary building structure or adding new beam spans depending on the hood weight and span.

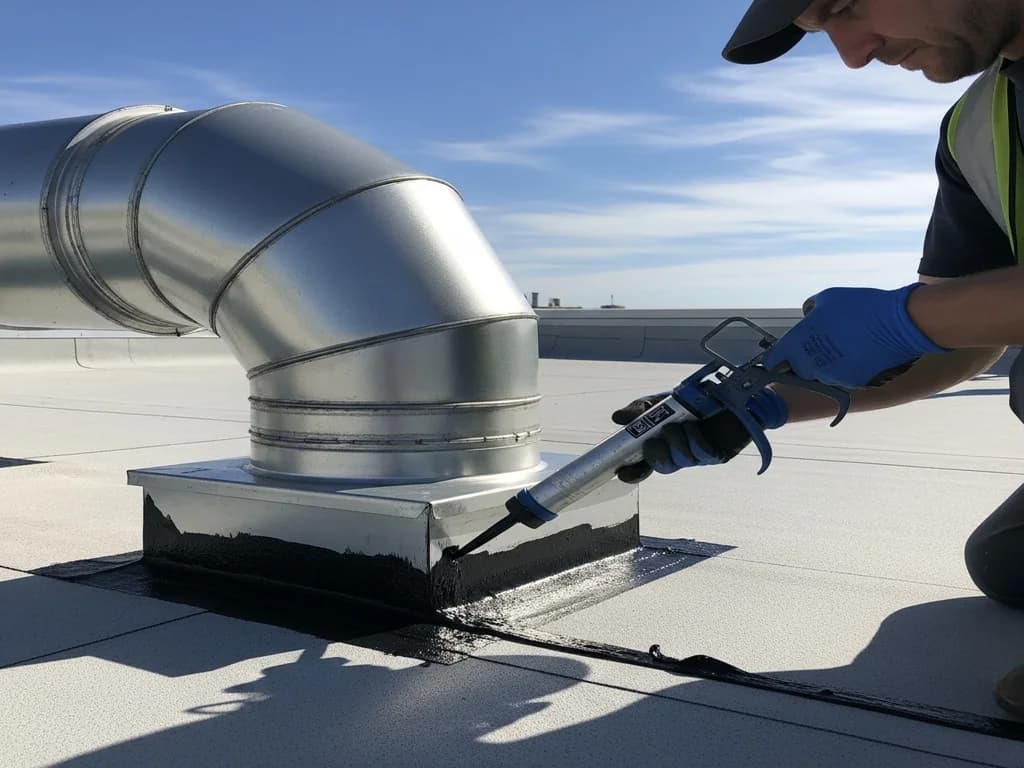

Roof penetration. The roofing contractor cuts the opening for the exhaust duct, installs a metal roof curb sized to the duct and the exhaust fan it will carry, and flashes the curb to the roof membrane. Done correctly, the curb is watertight and maintains the roof warranty. Done incorrectly, you get leaks inside the first six months.

The sequence matters. Structural support goes in first, then the roof penetration, then the hood and duct installation builds from the roof down and from the hood up to meet in the middle of the duct run.

Phase 3: Hood Installation and Ductwork Fabrication

This is the most trade-intensive phase of the installation.

Hanging the Hood

The hood canopy is lifted into position and secured to its structural supports. For a large Captive Air Type 1 hood, this often requires a team of four or more workers and sometimes a lift or crane depending on access. The canopy is leveled, squared, and bolted in place.

Once the canopy is up, the fire suppression installer mounts the chemical tank, runs the lines to the targeted nozzles inside the hood plenum, and installs the manual pull station along the egress path. The electrical contractor wires the hood lighting, any interior fan controls, and the fire suppression signaling circuits.

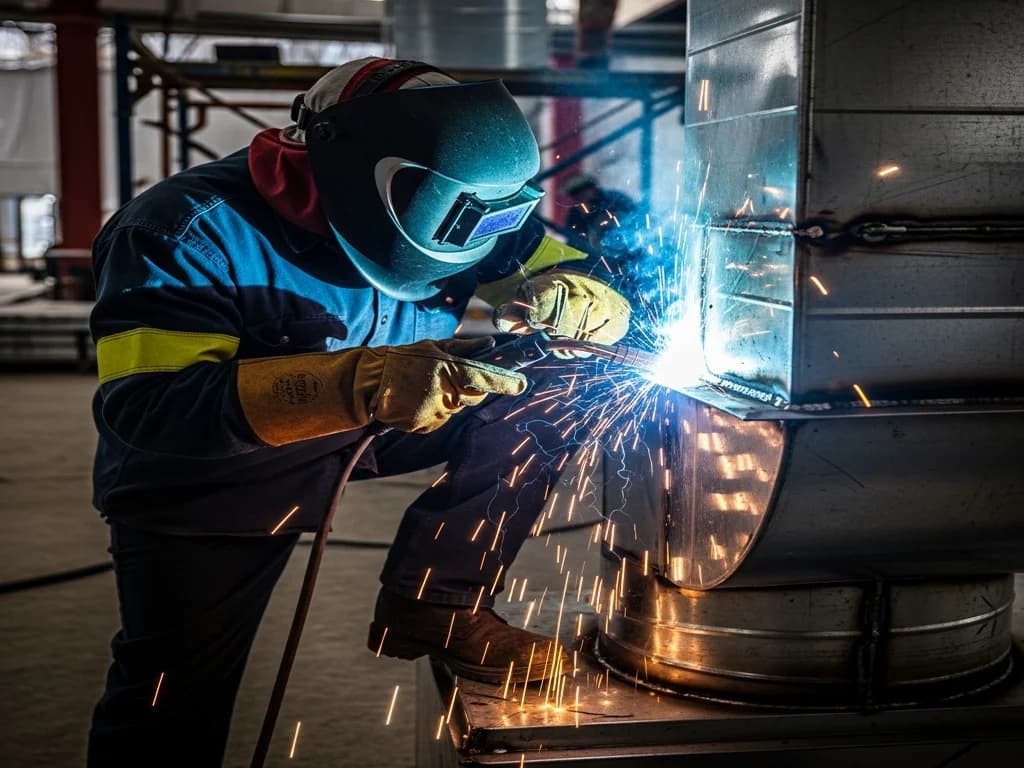

Ductwork Fabrication and Welding

For Type 1 grease ducts, heavy-gauge carbon steel (16-gauge typical) or stainless steel (18-gauge typical) is fabricated on site or pre-fabricated in a shop. Every seam, joint, and elbow is continuously welded liquid-tight by a certified welder. Welds are visually inspected, and in some jurisdictions, a light test or water test is required to verify zero leakage.

Access panels are installed at every change of direction and at regular intervals along long horizontal runs. These are the panels that hood-cleaning contractors will use for the next decade of periodic professional cleaning.

If the duct route passes within 18 inches of combustible structure, fire-rated ceramic duct wrap is installed around that section per manufacturer specifications.

Rooftop Fan Installation

The upblast exhaust fan is lifted onto the roof curb, bolted down, and wired to its dedicated circuit. A grease containment box is installed at the base of the fan, and the absorbent pad is placed. The roofing contractor does a final flashing and sealing pass once the fan is in place.

Phase 4: Make-Up Air Unit Installation

The MUA unit — rooftop or wall-mounted depending on design — is installed in parallel with the exhaust side. Supply ductwork runs from the MUA into the kitchen space, releasing fresh tempered air at a rate matched to the exhaust CFM.

The MUA unit is wired to its own dedicated circuit and tied into the hood's control system so exhaust and supply fire up together.

Phase 5: Air Balancing

Once the mechanical installation is complete, a specialized balancing technician measures the actual airflow coming out of the exhaust fan and coming in through the MUA supply. They adjust fan belts, motor speeds, and damper positions until the two systems are in equilibrium.

This is the step that makes the difference between a hood that captures properly and a hood that dumps smoke into the retail space. Skipping or rushing balancing is the most common cause of failed fire marshal walkthroughs.

Phase 6: Inspection Sequence

Three separate inspections typically stand between the install and your certificate of occupancy.

Building Inspector

Verifies structural integrity, permit compliance, electrical installation correctness, and general code conformance. Usually the first or concurrent inspection.

Fire Marshal

The most detailed inspection. Fire marshal checks:

• Weld quality on the grease ductwork
• 18-inch clearance compliance (or fire-rated wrap where clearance is reduced)

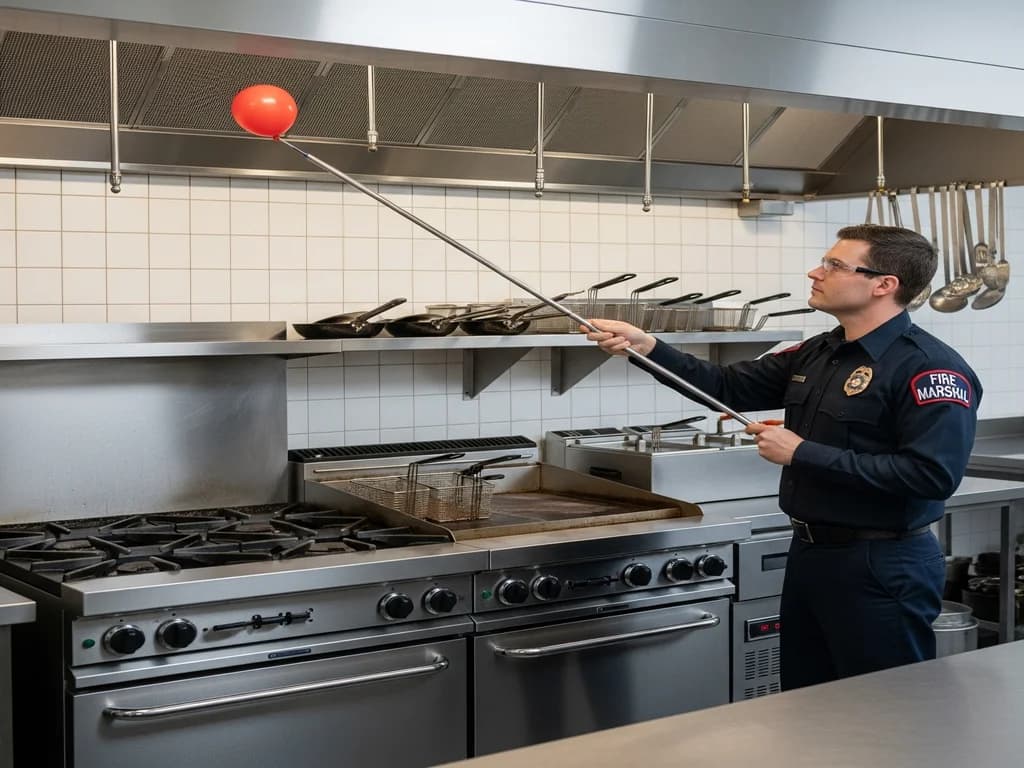

• Fire suppression system — including a puff test or balloon test where they trigger the system to verify chemical lines are clear, nozzles deploy at pressure, and the automatic fuel shut-off activates
• Manual pull station placement and accessibility
• Roof clearances on the upblast fan

Health Department

Verifies sanitation standards on the hood interior — smooth welded construction, shatterproof sealed lighting, pitched grease trough, removable collection cup, cleanability.

Scheduling all three inspections in a coordinated sequence is part of our scope. A single failed inspection triggers re-work and re-scheduling, so we inspect our own work informally before we call the official inspector in.

Phase 7: Commissioning and Handover

Once all inspections pass, we commission the system:

• Fire suppression system armed and tagged with a certified fire protection company's inspection sticker
• Hood, MUA, and exhaust fan all tested under load
• Staff walk-through on manual pull station location and use
• Documentation package handed over: permit approvals, weld inspection records, suppression system certificate, air balance report, maintenance schedule

Ongoing Maintenance

After commissioning, your hood requires:

• Daily removal and cleaning of grease baffle filters
• Periodic professional cleaning of the hood interior, ductwork, and rooftop fan — monthly to biannually depending on cooking volume
• Semi-annual inspection and re-tagging of the fire suppression system by a certified fire protection company

We don't handle the ongoing cleaning or fire suppression re-certification ourselves — local specialists handle those. We do hand off the system with a clear maintenance schedule and vendor recommendations so you know who to call.

Installation Timeline: What to Expect

Every project is site-specific, but typical timelines for a convenience store hot food program Type 1 hood installation:

• Site assessment and design: 1–2 weeks
• Permit submission and review: 2–6 weeks (highly variable by jurisdiction)
• Equipment lead time: 3–8 weeks from Captive Air depending on model and configuration
• On-site installation: 1–3 weeks once equipment arrives
• Balancing and inspections: 1–2 weeks

Total: typically 8–20 weeks from project start to certificate of occupancy on a greenfield or major remodel. Smaller retrofits can move faster; complex travel-center or full-QSR builds can run longer.

Projects that run long almost always run long because of permit review delays or trade scheduling bottlenecks — which is why professional project management is worth the fee.

Our Scope: One Project, One Manager

Every installation we do runs under one project manager coordinating every trade. We handle:

• Captive Air equipment specification and order
• Permit submission across all applicable authorities
• Mechanical, electrical, fire suppression, and roofing trade coordination
• Welding certification and weld inspection
• MUA sizing and balancing
• Inspection scheduling and coordination
• Commissioning and documentation handoff

You deal with our project manager for the full duration. We deal with the trades. No gap-bridging on your side, no contractor-pointing-fingers-at-each-other when something goes wrong.

Where vent hood installation fits in the broader food service build — whether that's a basic hot food program setup, a full c-store kitchen design, or a branded QSR inside a convenience store — varies. Our convenience store food service design pillar covers how the hood integrates with the overall food service plan.
