Commercial Cooler Installation: Reach-Ins, Display Cases, and Prep Tables

Beyond walk-in coolers, commercial refrigeration includes an entire tier of reach-in, display, and prep equipment that runs the day-to-day of convenience stores, restaurants, and retail food service. Reach-in refrigerators keep the kitchen line moving. Glass-door display merchandisers convert impulse beverage sales. Refrigerated prep tables hold sandwich-line ingredients at safe temperatures during service. Every one of these units has to be installed correctly to hit its rated efficiency, pass health inspection, and survive years of commercial use.

JayComp Development installs commercial coolers across every major category as part of our full commercial refrigeration services scope. We specify equipment from proven manufacturers, install it to manufacturer spec, and hand over systems that perform reliably for their full expected lifespan. With 24+ years in business and 2,500+ completed projects, we've installed enough of these units across enough different operations to know what survives and what doesn't. Call our team at 877-843-0183 or reach out through our contact page to plan your project.

What We Install

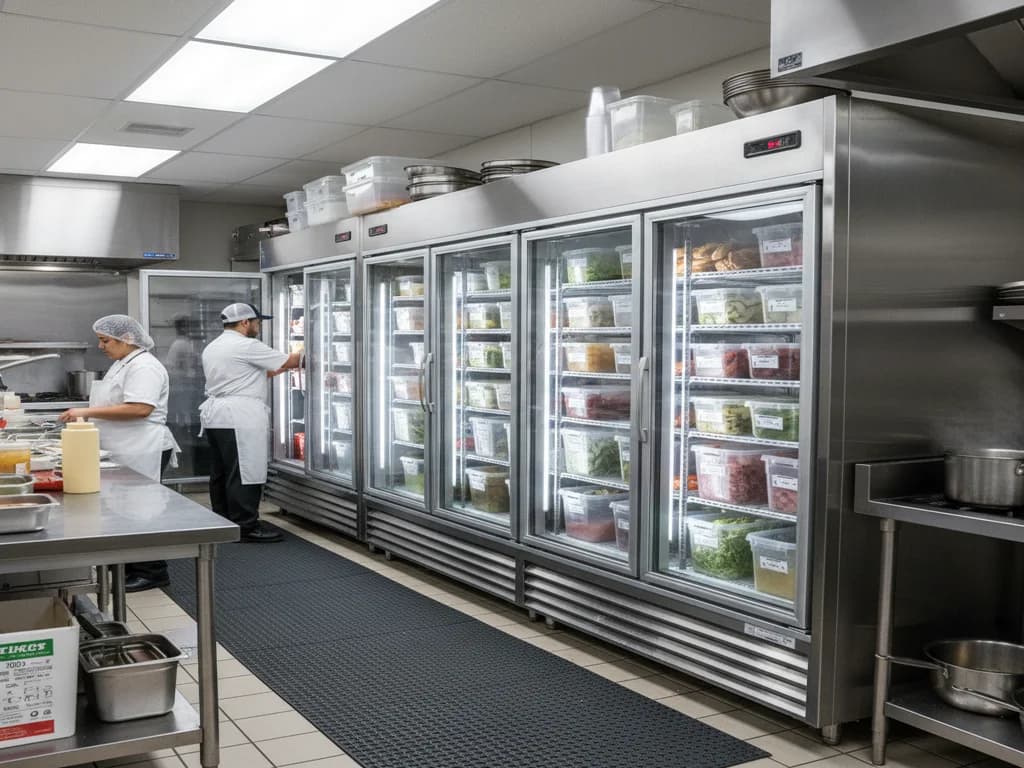

Reach-In Refrigerators

Reach-in units are the workhorses of any commercial kitchen. Cooks open and close the doors hundreds of times during a service — maybe thousands during a peak rush. The cooling system has to recover temperature quickly after every opening, and the insulation has to keep ambient kitchen heat out even when the kitchen line is running hot.

What we consider when specifying reach-ins:

• Door count and configuration — single, two-door, three-door; solid doors for back-of-house storage vs. glass doors for self-service areas
• Condensing unit location — self-contained (compressor on top) for simplicity, or remote for reduced heat-dump into the kitchen
• Interior configuration — full shelving, half shelves for bulk items, pan slides for food service prep
• Temperature zoning — single-temp for standard refrigeration, dual-temp for units that need refrigeration and freezer zones

We work primarily with Heatcraft and Russell refrigeration systems for reach-in applications. Both are long-established commercial-grade manufacturers with strong parts availability and service networks — which matters when your kitchen line is down.

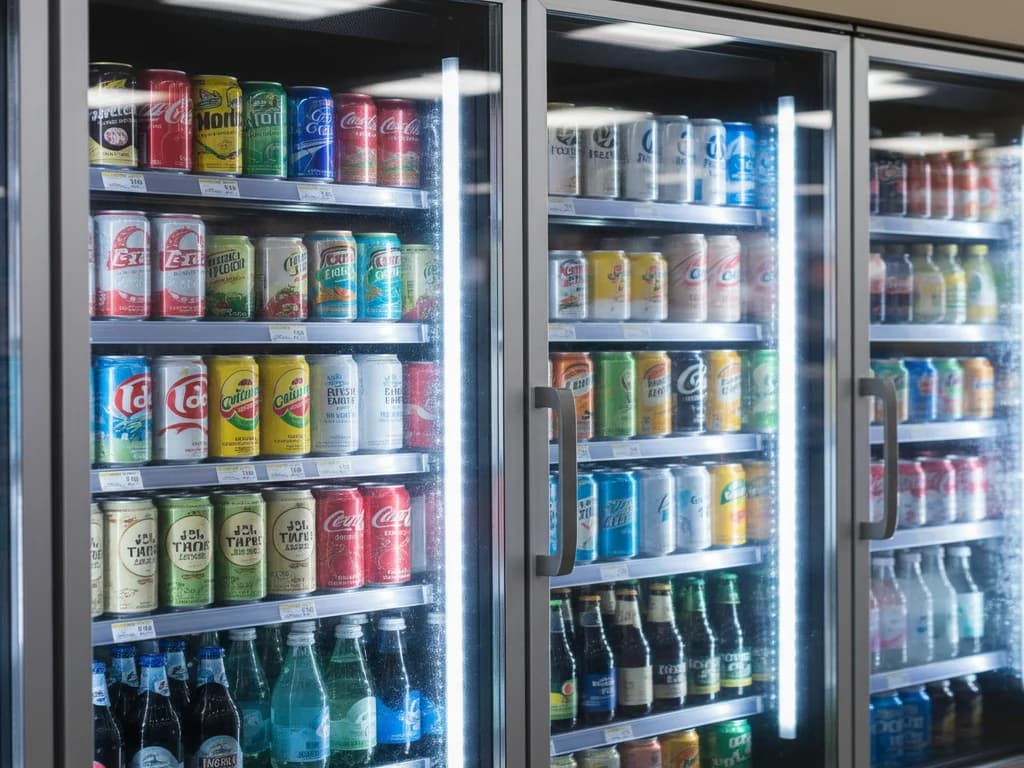

Glass-Door Display Merchandisers

Display merchandisers convert refrigeration into direct retail sales. A customer pulling a cold drink from a well-lit, crystal-clear display door is an impulse purchase. A customer squinting through a fogged-up door at indistinguishable product is a lost sale. The installation quality determines which of those outcomes you live with for the next decade.

Key specifications for display coolers:

• Anti-fog glass — double- or triple-pane with integrated anti-sweat heaters around the frame. Condensation on the glass kills visual merchandising.
• Self-closing doors — if a customer leaves a door slightly ajar, the door should swing closed under spring tension. Without this, compressors run continuously, energy consumption spikes, and product temperatures drift.
• LED interior lighting — bright, cool-toned, mounted on the door frames or shelf leading edges. LED has replaced fluorescent entirely in modern installations because of efficiency, longevity, and the lack of heat contribution to the cold zone.
• Gravity-feed shelving — angled wire shelves inside the unit that automatically slide the next beverage to the front as customers remove items. Keeps the display fully faced without constant staff attention.

For the glass door hardware itself, we specify Styleline, Anthony, and Commercial Display Systems depending on the application. Each has strengths — Styleline for high-volume convenience stores, Anthony for premium merchandiser applications, CDS for specialty configurations — and matching the door brand to the use case is part of what professional specification delivers.

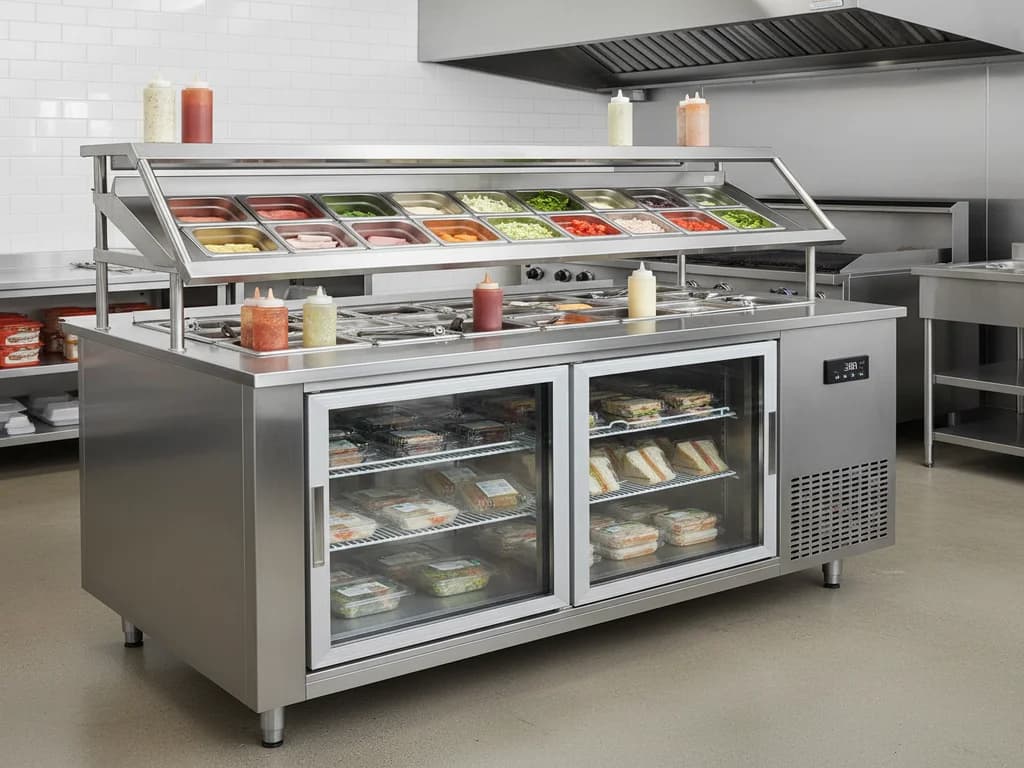

Refrigerated Prep Tables

Prep tables sit at the intersection of refrigeration and food preparation. The cold rail on top holds ingredients at safe temperatures during active service; the refrigerated cabinet below stores bulk product for reloading. Health code compliance on prep tables is scrutinized heavily because contamination risk is high when refrigerated ingredients sit in open pans during service.

Installation considerations:

• Level setting. An unlevel prep table prevents doors from sealing and causes condensation pans to overflow. Laser leveling during install is mandatory.
• Dedicated electrical circuit. Prep tables should never share a circuit with other heavy kitchen equipment — the shared startup surge trips breakers.
• Temperature calibration. Upper rail and lower cabinet zones need independent calibration. A rail that drifts warm during a lunch rush is a health citation waiting to happen.
• Drain connection. Condensation pan drains have to tie into building plumbing correctly, with air gap per health code.

We specify Heatcraft and Russell refrigeration on custom prep-table builds and work with major manufacturers on standard units. The goal on every prep-table install is zero temperature drift during a peak service rush.

Our Installation Process

Commercial cooler installation is mechanical precision work. Our process is consistent across the three categories above.

1. Site Assessment

Before equipment arrives, we evaluate the installation space — floor levelness, doorway and hallway clearances for moving the unit, electrical panel capacity, and plumbing for condensation drainage. For detailed requirements on site prep, see our cooler installation requirements guide.

2. Delivery and Placement

Commercial coolers are heavy — a three-door reach-in can easily exceed 700 pounds. We move them into position using specialized dollies and protective floor covers to avoid damage. Large display merchandisers sometimes require disassembled shipping and on-site reassembly.

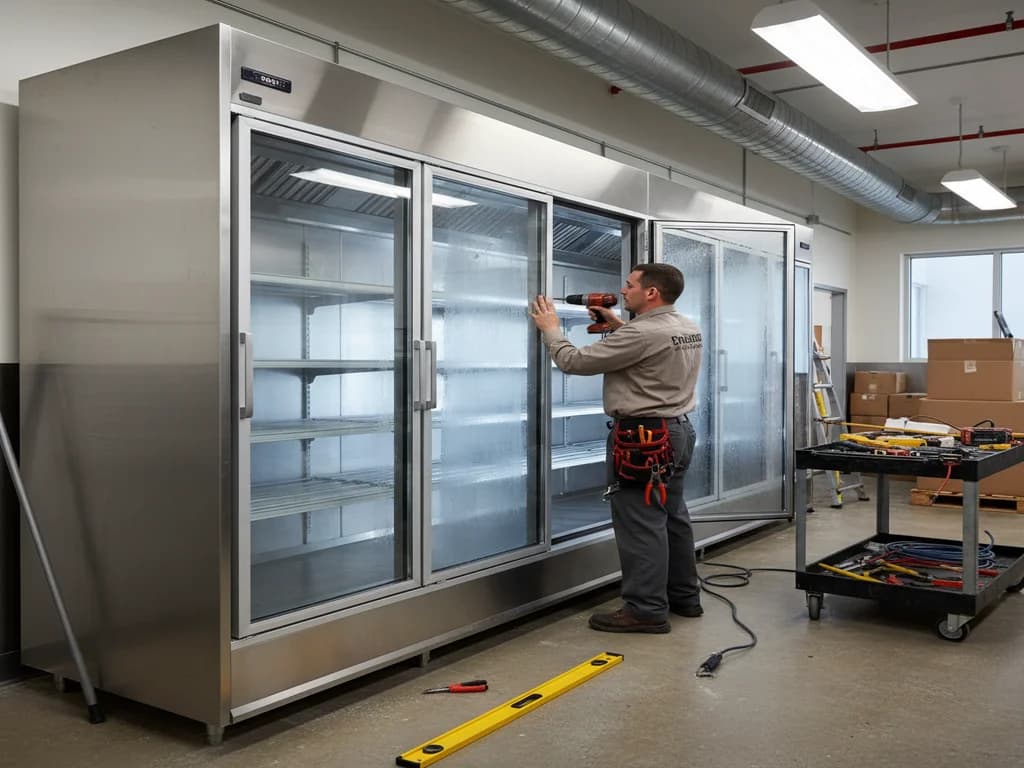

3. Leveling

Every commercial cooler gets laser-leveled during installation. An unlevel unit means doors that don't self-close, gaskets that don't seal, condensation that doesn't drain, and a cooling system that works harder than it should for no gain.

4. Utility Connections

• Electrical. Dedicated circuit, correctly sized, landed on the appropriate voltage.
• Plumbing. Condensation drain routed to a floor sink with approved air gap. Never onto the floor, never direct to sewer without the air gap.
• Ventilation. Self-contained units need space around the condenser to reject heat. We verify clearances match manufacturer requirements.

5. Calibration and Testing

Digital thermostats calibrated against a reference thermometer. Anti-sweat heaters verified operational on display units. Door self-closers adjusted. Gasket seals checked with the light test (visible light through a closed seal indicates a leak). We don't leave the site until the unit is holding setpoint and cycling properly.

When You Need Walk-In Scale

Reach-ins, prep tables, and display merchandisers cover the operational side of commercial refrigeration — the equipment you interact with during service. When your storage volume outgrows what reach-ins can provide, the next step is a walk-in unit.

We integrate reach-in and walk-in refrigeration on comprehensive projects so the front-of-house display and back-of-house bulk storage work together cleanly. For the full walk-in cooler scope, see our walk-in cooler installation guide. For sub-zero storage, our walk-in freezer installation process handles the specific thermal and structural demands of deep-freeze applications.

When you're evaluating where to place larger equipment — interior for workflow, exterior to free up retail space — our indoor vs. outdoor walk-in cooler breakdown walks through the trade-offs.

Repair vs. Replace: Our Honest Position

We don't do repair or emergency service work on commercial coolers. Other local companies specialize in that and do it well. What we do is new equipment specification and installation — the work that establishes whether a unit performs to its rated efficiency for its full design life, or struggles from day one because it wasn't installed correctly.

If you're running aging reach-ins with compressor issues, door gaskets that no longer seal, or rising energy bills, we can help you evaluate whether replacement makes more sense than another round of repairs. Modern commercial coolers use high-efficiency EC motor technology, better insulation, and LED lighting that collectively drive meaningfully lower operating costs than units built even a decade ago. The ROI math on replacement often favors the new unit within two to three years of operation.

For proactive care that extends the life of working units, see our walk-in cooler maintenance guide — the daily, weekly, and monthly tasks in that guide apply to commercial coolers broadly, not just walk-ins.

Custom Pricing Based on Your Scope

We quote commercial cooler installations individually because every site is different. Key variables that shape your quote:

• Number and type of units — a single reach-in is quick; a full retail display run of eight glass-door merchandisers is a day of work.
• Electrical requirements — if panel upgrades are needed, those add to scope.
• Plumbing for condensation drainage — existing floor sink vs. new drain installation.
• Site access — delivery logistics, especially on tight urban sites.
• Brand and specification of the equipment itself.

For a breakdown of the variables that drive larger commercial refrigeration pricing, our walk-in cooler installation cost guide covers the same principles at walk-in scale.

Call JayComp Development at 877-843-0183 for a custom quote on your project. You can also explore our commercial walk-in coolers product page for the broader refrigeration catalog.

Partner With JayComp Development

Commercial cooler installation isn't something to hand off to a general contractor or a DIY crew. The specification, leveling, utility connection, and calibration work has to be done correctly or the equipment won't deliver its rated performance. With 24+ years of experience and 2,500+ completed projects, we install commercial coolers to the standard they were designed for — and we stand behind the installation.

Ready to plan your commercial cooler project? Call JayComp Development at 877-843-0183 or visit our contact page.
