Walk-in freezers are walk-in coolers' harder-working cousin. The mechanical principles are similar, but the temperature differential between a 0°F freezer interior and an 85°F ambient summer environment is nearly double what a cooler handles — and the engineering has to account for every bit of that gap. Insulation requirements are higher, door systems need frost-resistance features a cooler doesn't have, the foundation has to prevent frost heave, and outdoor units need specific controls to operate safely in below-freezing ambient conditions.

JayComp Development installs commercial walk-in freezers for grocery operations, convenience stores with bulk frozen inventory, food service operations, and specialty retail. Every install is engineered for the specific demands of sub-zero storage. With 24+ years in business and 2,500+ completed projects, we've delivered walk-in freezers across enough site conditions and climate zones to know exactly what it takes to build one correctly. Call our team at 877-843-0183 or reach out through our contact page for a project evaluation.

Why Freezers Are Harder Than Coolers

A walk-in cooler holds roughly 35°F to 38°F internal. A walk-in freezer holds 0°F or lower — sometimes as cold as -10°F for ice cream applications. That 50°F+ differential creates engineering challenges that a cooler installation doesn't have to address.

Heavier Insulation Requirements

Standard four-inch polyurethane panels work for most cooler applications. Freezers usually step up to five-inch or six-inch panels with higher R-values to reduce the heat infiltration the refrigeration system has to overcome. The thicker panels also resist the moisture migration that causes insulation degradation over time.

Frost Heave Prevention

Sub-zero temperatures at the cooler floor will eventually penetrate any concrete slab beneath, freeze the moisture in the soil below, and cause the soil to expand (heave). Over years, this literally cracks the building foundation and destroys the freezer from the bottom up.

We prevent this with:

Insulated floor panels for indoor installations — thermal barriers that keep sub-zero temperatures from reaching the concrete below.
Sub-floor heating elements for very large or long-duration freezers, actively warming the soil beneath to prevent freezing.
Properly-rated concrete sub-floors for outdoor installations, poured with thermal breaks engineered in.

Moisture Control at the Door

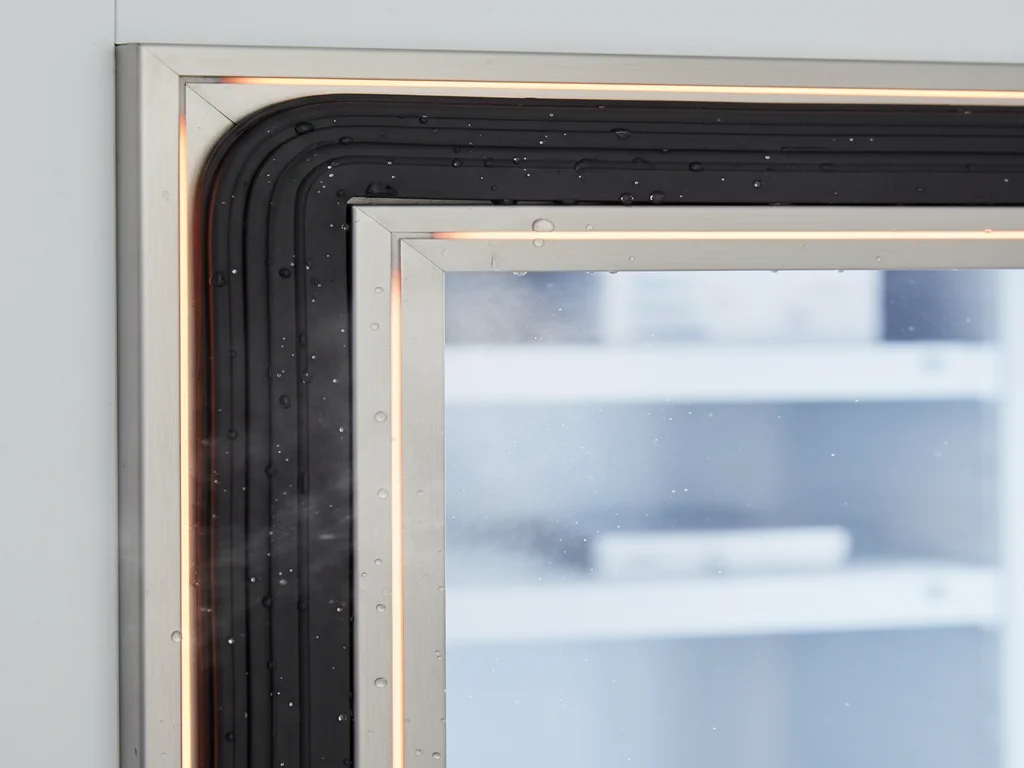

Heated door frame on a commercial walk-in freezer preventing gasket freeze and ice formation

Every time a freezer door opens, warm humid ambient air floods the cold interior and immediately begins freezing onto every cold surface. Without active moisture control, the door gasket freezes to the frame, ice builds up around the door perimeter, and the unit eventually becomes impossible to open without damage.

Commercial walk-in freezers include:

Heated door frames and gaskets — low-wattage electric heating around the door perimeter prevents ice formation on the seal.
Heated pressure relief ports — small vents that equalize the pressure differential inside the freezer, so the door doesn't "vacuum-seal" shut after closing.
Strip curtains — heavy clear plastic flaps hung inside the doorway, providing a secondary barrier against warm-air infiltration during staff access.

Insulated Floor: The Non-Negotiable

If your walk-in freezer is installed over a basement, a wood-framed floor, or any structure that isn't a slab-on-grade concrete foundation, an insulated floor panel is mandatory. Without it, cold penetrates the floor system below the freezer and causes severe condensation, rot, and mold growth in the structure underneath.

Even on slab-on-grade installations, insulated floor panels are strongly recommended. The panels provide a thermal break between the freezer interior and the concrete, reducing the load on the refrigeration system and eliminating the frost heave risk.

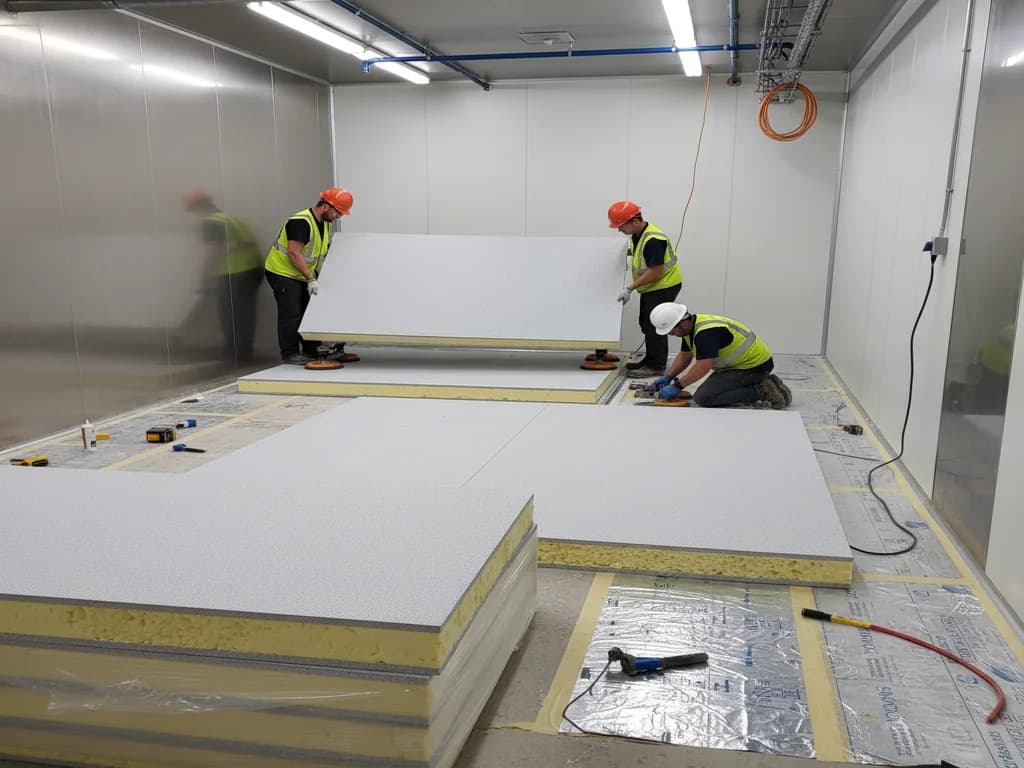

Heavy-duty insulated floor panels being installed for a commercial walk-in freezer to prevent frost heave

Freezer floor panels typically include:

High-density polyurethane insulation of sufficient thickness to match the wall panel R-value.
Heavy-duty metal tread plate on the walking surface — freezer floors take abuse from pallet jacks, hand trucks, and daily foot traffic under icy conditions.
Continuous seal to wall panels and door threshold, eliminating any gap where warm air could infiltrate beneath.

Equipment Brands We Specify

For commercial walk-in freezers, we work with the same proven manufacturers as for walk-in coolers:

Leer — purpose-built convenience-store freezers with strong retail-facing configurations
KPS (Kysor Panel Systems) — custom panel construction for unusual sizes and layouts
Crown Tonka — fully custom walk-in freezer designs for specialized applications

For the mechanical refrigeration system — the compressor, condenser, evaporator — we specify Heatcraft and Russell. Both have proven low-temp refrigeration packages with reliable performance at sub-zero operating conditions.

We don't chase the cheapest freezer on the market. A commercial walk-in freezer is a ten-to-fifteen-year investment, and the engineering details that separate a Leer, KPS, or Crown Tonka unit from a bargain import matter a great deal over that timeline.

Outdoor Walk-In Freezer Considerations

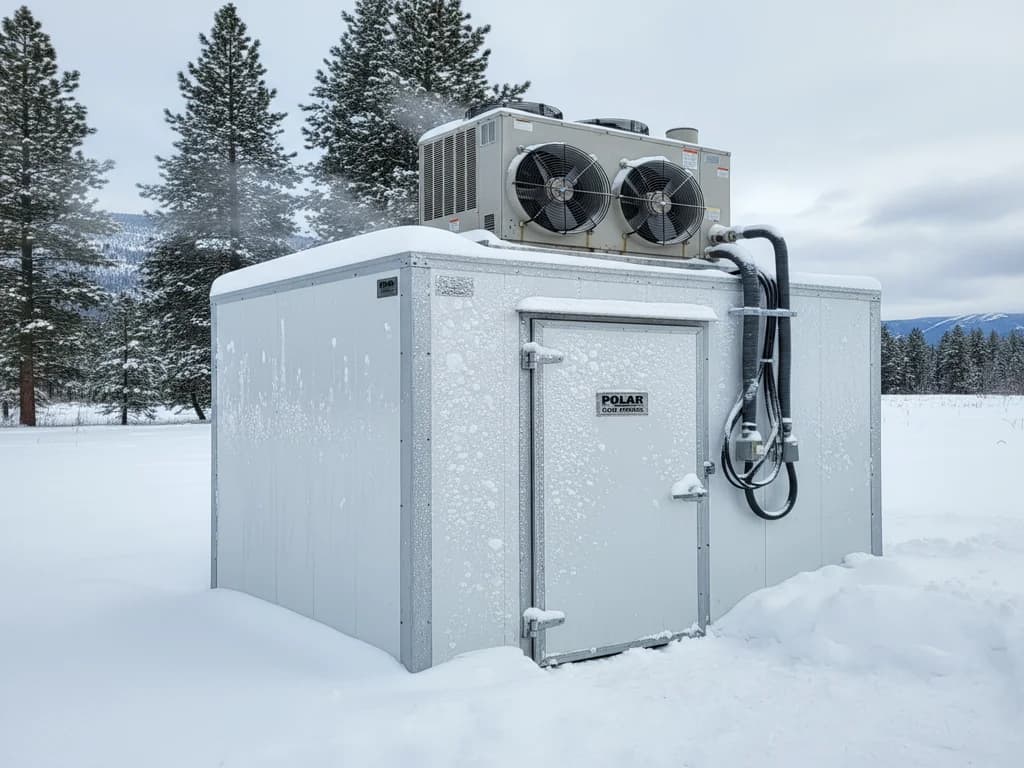

Outdoor commercial walk-in freezer with weatherproof cladding and low-ambient winter control package

Outdoor walk-in freezers save premium interior square footage — often a compelling reason to push the freezer outside the main building. But the outdoor environment introduces a set of problems that indoor installations don't face.

Weather Protection

The exterior of an outdoor freezer has to function as a standalone weatherproof building. Requirements:

Single-piece rain roof membrane over the top of the freezer box. Standard panels have seams that would allow water infiltration — the rain roof is a continuous weatherproof layer above them.
Heavy-duty exterior weather coatings on the wall panels to resist UV degradation, rain impact, and freeze-thaw cycling.
Weatherproof door seals with additional gasket material beyond what an indoor installation needs.

Low-Ambient Refrigeration Controls

When outdoor ambient temperature drops below the freezer's interior target — typical for cold-climate winters — the refrigeration system faces a counterintuitive problem. If the compressor tries to cycle on while the ambient air is actually colder than the evaporator setpoint, the compressor can migrate refrigerant into its own crankcase and destroy itself.

Low-ambient controls prevent this:

Crankcase heaters keep compressor oil warm regardless of outside temperature, preventing refrigerant migration.
Head pressure control valves maintain correct system pressures during cold-ambient operation.
Fan cycling controls modulate condenser fan speed to prevent over-cooling the condenser in winter.

Without these controls, an outdoor freezer in a cold climate will literally destroy itself over a single winter. Our specifications always include the appropriate low-ambient package for your climate zone.

Concrete Pad

Outdoor walk-in freezers require a dedicated, reinforced, perfectly-level concrete pad. The pad has to support the weight of the freezer plus loaded inventory (typically 200+ pounds per square foot), remain level over freeze-thaw cycles, and provide a thermal break to prevent frost heave in the soil below.

For the full decision framework on where to place your freezer, see our indoor vs. outdoor walk-in cooler comparison — the same trade-offs apply to freezers.

Our Installation Process

1. Site Assessment

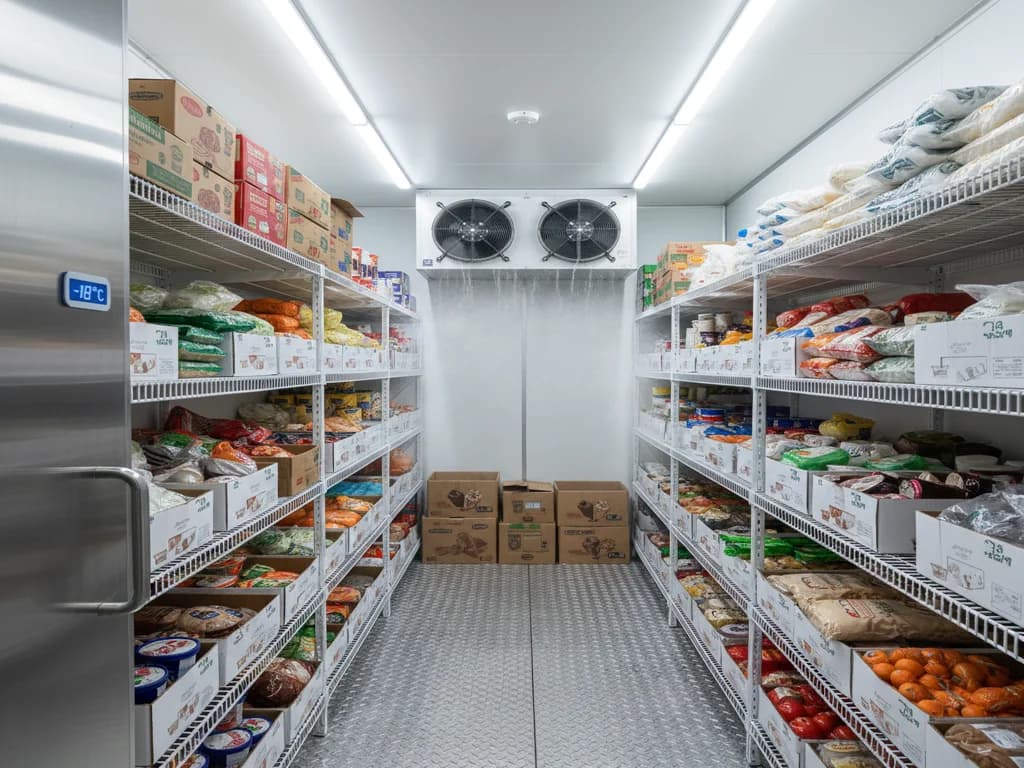

Interior of a commercial walk-in freezer with heavy-duty wire shelving and frost-free LED lighting

We evaluate the installation site — structural capacity, floor condition, electrical panel capacity, and whether the build is indoor or outdoor. Freezers draw heavier electrical loads than coolers, so verifying service capacity is critical. Full detail on site requirements in our cooler installation requirements guide.

2. Permit Submission

Freezer installations require the same permit package as coolers — building, electrical, and mechanical permits, plus health department review. Full permit breakdown in our walk-in cooler permits guide.

3. Floor Preparation

For insulated floor installations, we prepare the subfloor, position the insulated panels, and seal them continuously to the wall panels as they go up. For sub-floor heating systems, we install the heating cables before the insulated panels go down.

4. Panel Assembly

Five-inch or six-inch polyurethane panels with cam-lock fastening, each joint sealed with commercial-grade freezer-rated sealant. Wall panels lock to floor panels, ceiling panels lock to walls, door frame integrates with wall panels, all continuously sealed.

5. Mechanical Installation

Low-temp refrigeration system installed with remote condenser typical for freezer applications. Copper refrigerant lines routed with insulation, brazed under nitrogen purge, pressure-tested for leaks, evacuated to deep vacuum, charged to specification. Electric defrost heaters installed on the evaporator coil — mandatory for sub-zero units because hot-gas defrost alone isn't sufficient. Door-frame heaters wired to their own dedicated circuit.

6. Commissioning

Full temperature pull-down test — verifying the unit reaches and holds 0°F under design load. Defrost cycling verified. Door seals tested. Low-ambient controls confirmed operational for outdoor installations.

Cost Factors

Walk-in freezer installation cost is always higher than an equivalent-sized walk-in cooler because of the heavier insulation, larger refrigeration system, specialized door components, and required sub-floor work. Main drivers:

Size — both floor footprint and interior height
Insulation thickness — five-inch vs. six-inch panels
Refrigeration horsepower — sized to the thermal load
Indoor vs. outdoor — outdoor adds weatherproofing, concrete pad, low-ambient controls
Sub-floor requirements — insulated floor panels vs. heated sub-floor for large installations
Electrical capacity — panel upgrades if existing service won't support the freezer's amperage draw

For the full breakdown of refrigeration project pricing variables, see our walk-in cooler installation cost guide — the same principles scale up for freezer work.

Call JayComp Development at 877-843-0183 for a custom quote.

Repair vs. Replace

We don't perform repairs or emergency service on commercial freezers. Where we add value is new installation and system specification. If your existing freezer is losing temperature, running near-continuously, experiencing recurring compressor failures, or using phased-out refrigerants like R-22, the honest math usually favors replacement rather than another round of repairs.

Modern walk-in freezers deliver meaningfully better energy efficiency than older units through improved insulation, scroll compressors, EC evaporator motors, and smart digital controls. When an aging freezer is draining hundreds of dollars a month in extra electricity and posing a constant risk of catastrophic downtime, the new-installation ROI math is usually compelling within 2–3 years.
